Illinois railroads easily are the nation's most important in terms of the region they serve and volume of traffic which is handled.

The state was once home to the most Class I railroads of all time and today is the only state to claim all seven North American Class Is within its borders.

The Prairie State is also home to the nation’s railroad capitol, Chicago; where East meets West (Chicago was the primary reason so many railroads originally entered Illinois).

No other state, past or present, features such a wide variety of liveries, operations, and history as does Illinois.

While today its rail network has shrunk to just over 7,000 miles during the industry's "Golden Age," Illinois was once home to more than 12,000 miles.

The map below, from 1920, illustrates just how dense this coverage was.

While most lines converged into Chicago, Illinois was blanketed with lines to the south as well; such as the Wabash and Nickel Plate bound for St. Louis while the Illinois Central and Gulf, Mobile & Ohio headed south towards the Gulf Coast.

There was also trunk lines maintained by the Baltimore & Ohio, Pennsylvania, and New York Central headed for St. Louis and Kansas City.

Photos

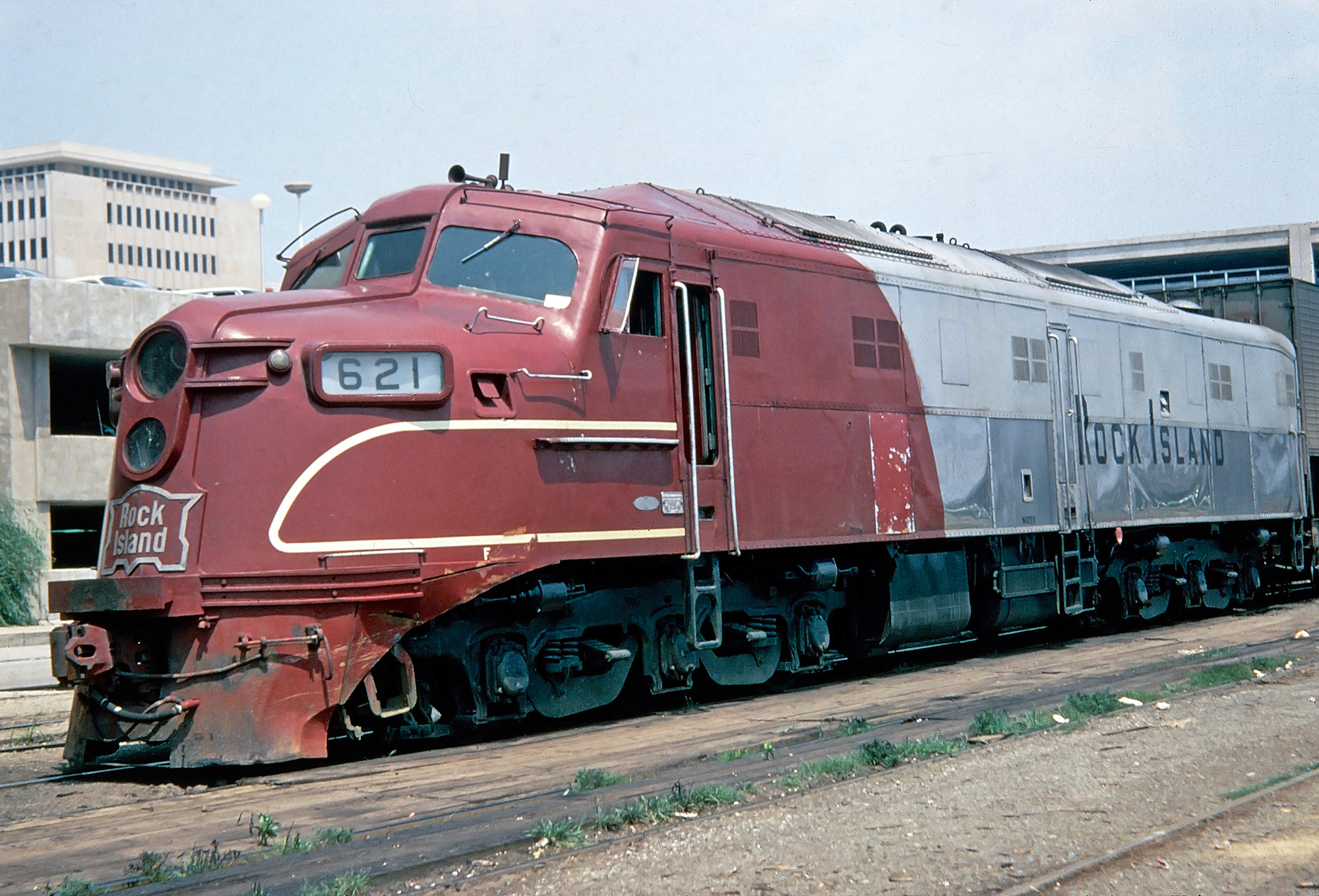

Rock Island DL-109 #621 is seen here in downtown Peoria, Illinois, circa 1967. The Caterpillar headquarters can be seen in the background. By this time the locomotive had been re-engined with Electro-Motive 567B prime movers. American-Rails.com collection.

History

While the state's rail history dates back to 1837 with crude operations built to haul coal by horses it was not until the Northern Cross Railroad opened its 59-mile route connecting Meredosia and Springfield in 1842 did a true common-carrier system first appear (today, its original route still survives under Norfolk Southern).

Interestingly, prior to 1840 Illinois had virtually no miles of railroad to speak of whatsoever. However, just 40 years later it boasted an incredible 8,000 miles!

The history of Chicago becoming a mecca of the railroad industry predates the industry itself.

The city began as a well-positioned western outpost for Great Lakes shipping and this strategic location became the de facto meeting point for eastern railroads building west, western railroads continuing west [from Chicago, into the frontier territory], and smaller systems building from the north and south.

As the 1850s dawned railroads exploded as rapid building and expansion of rail lines was feverishly underway.

By 1856 Illinois was home to ten railroads, all of which served Chicago and as the years followed most of the biggest and most well remembered companies reached the city.

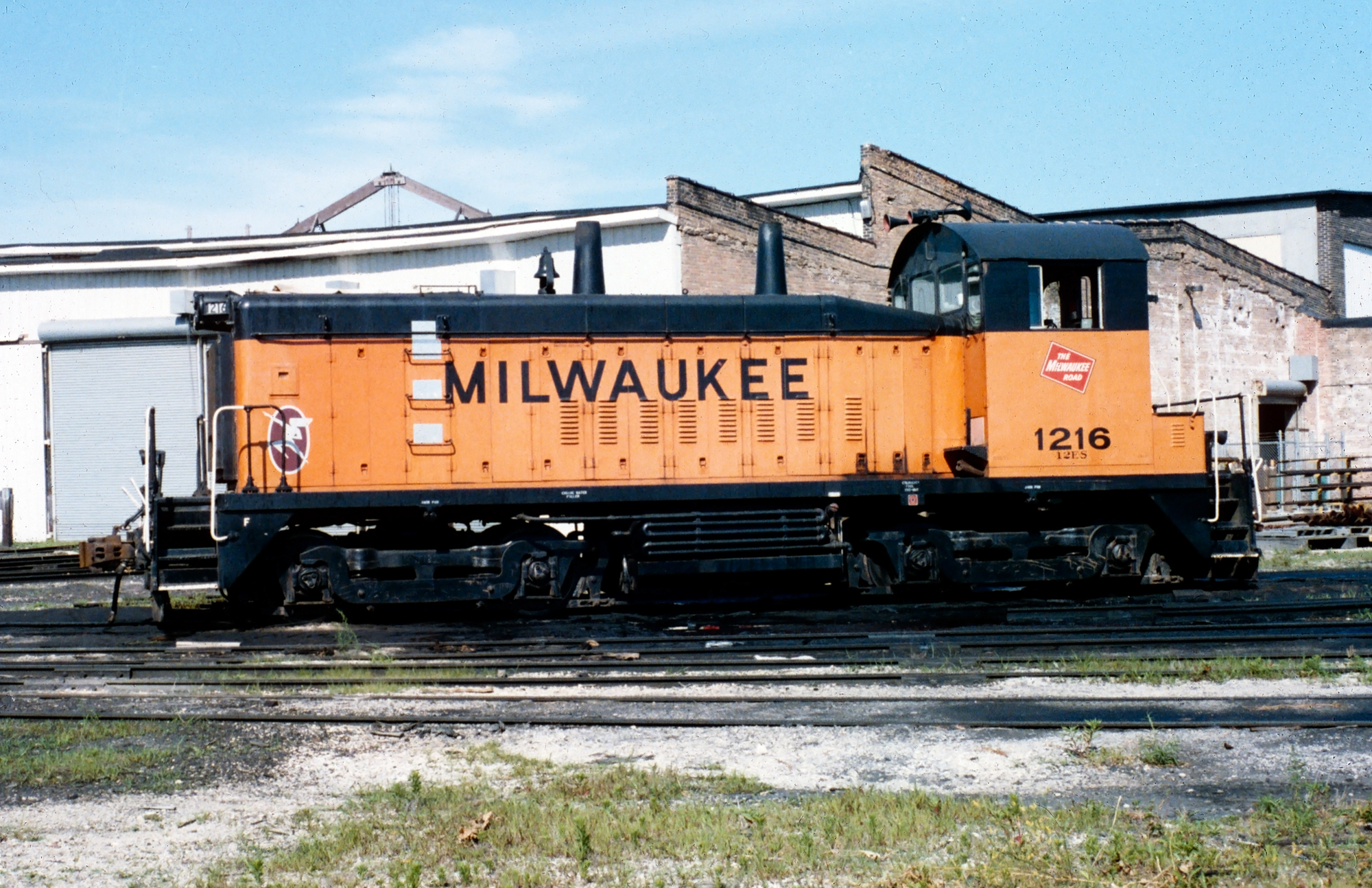

Milwaukee Road SW1200 #1216 (formerly #711) was already wearing its Soo Line number when photographed here at Bensenville, Illinois on June 23, 1986. R.W. Brown photo. American-Rails.com collection.

These original classic carriers include the:

Atchison, Topeka & Santa Fe (1888)

Baltimore & Ohio Railroad (1874)

Chicago & North Western Railway (which has its beginnings in Chicago in 1848)

Chicago, Burlington & Quincy (which has its origins from the little Galena & Chicago Union Railroad in 1849);

Milwaukee & St. Paul (1873). This system was an earlier component of the modern Milwaukee Road.

Rock Island (1852)

Illinois Central (1856)

New York Central (reached Chicago in 1877 after gaining control of the Lake Shore & Michigan Southern Railway)

Pennsylvania Railroad (reached Chicago in 1869 via the Pittsburgh, Fort Wayne & Chicago Railroad);

Chesapeake & Ohio (reached Chicago in 1908 via its acquisition of the Chicago, Cincinnati & Louisville)

Chicago Great Western (has its origins in Chicago as early as 1835 but was not built until 1884)

Erie Railroad (1880)

Gulf, Mobile & Ohio Railroad (via ownership of the Alton Railroad in 1947)

Nickel Plate Road (has its origins in Chicago in 1881)

Wabash (1880)

Monon Route (1883)

Soo Line (1908)

Statistics

First Railroad	Northern Cross Railroad (1842)
Peak Mileage	12,188 (1920)
Current Mileage	6,883 (2020)
Current Railroads	52
Originated Rail Tons (2019)	125.9 million
Terminated Rail Tons (2019)	107.4 million
Originated Carloads (2019)	3,796,332
Terminated Carloads (2019)	3,637,446

As Chicago has become the center of the nation’s freight rail operations (it currently sees roughly 500 trains a day), not surprisingly, the tangled web of trackage now blanketing the city has become a real labyrinth.

Chicago's city limits currently features 893 route miles, 125 interlockings, and 57 yards.

Today, the average speed of a freight car making its way through the city is only 9 mph and requires 30 hours for that car to navigate its way through city limits.

Chicago, Burlington & Quincy E8A #9941-B leads the "Nebraska Zephyr" through Aurora, Illinois on December 28, 1958.

Abandoned Lines

An entire book could be written on abandoned railroads throughout Illinois. The crisscross the state and can be found literally everywhere.

Illinois was not only home to Chicago, the central hub of eastern and western railroads, but also contained numerous agricultural branch lines.

In addition, the state's periphery even boasted coal mines, served by the likes of the New York Central, Chicago & Illinois Midland, and Illinois Central.

The state's 5,000 miles of abandoned lines are far too extensive to cover here. A good resource on the subject is AbandonedRails.com. Notable standouts include:

Illinois Central's original "Charter Line" from Freeport to Centralia.

New York Central's "Egyptian Line" from Cairo to Paris (this route constituted the railroad's coal traffic in the region).

Chicago, North Shore & Milwaukee (The so-called "North Shore Line," the large interurban which served Chicago and Milwaukee).

Chicago, Aurora & Elgin (The "Roarin Elgin," another interurban which served Chicago and its western suburbs).

Most of the Chicago Great Western's main line from Chicago to the Mississippi River is gone, abandoned under successor Chicago & North Western.

Components of the old Illinois Terminal, another interurban which served much of central Illinois as well as St. Louis.

Rock Island's outbound commuter run on the Beverly Branch arrives at Blue Island, Illinois in the spring of 1974. Rick Burn photo.

To help alleviate this congestion the CREATE program (Chicago Region Environmental and Transportation Efficiency Program), at a cost of $1.5 billion, has been ongoing with the intent of it becoming a bypass for through freight trains to more easily navigate in and out of the city.

However, this project has remained in limbo for nearly two decades and does not appear it will ever get off the ground.

In an interesting move, Canadian National has been acquiring railroads in the region since its 2001 acquisition of Wisconsin Central (and the Elgin, Joliet & Eastern in 2009) to improve the flow of its trains around the city.

Rock Island GP40 #395 and other power at the railroad's shops in Silvis, Illinois, circa 1979. Mike Bledsoe photo. American-Rails.com collection.

Chicago, however, was not the only important location in Illinois.

While the northern part of the state saw lines fanning out from Chicago southern areas were home to through main lines stretching farther west to reach locations like St. Louis (the third busiest gateway behind Chicago and Kansas City).

Also, Illinois itself has retained a large number of manufacturing and warehousing/distribution industries, which provide railroads with a substantial amount of traffic, particularly around the Decatur area.

The state also continues to be a major source of agriculture traffic, although the traffic itself has fallen off in the last 30 years due to the competition of trucks. Today, Illinois includes all major Class Is.

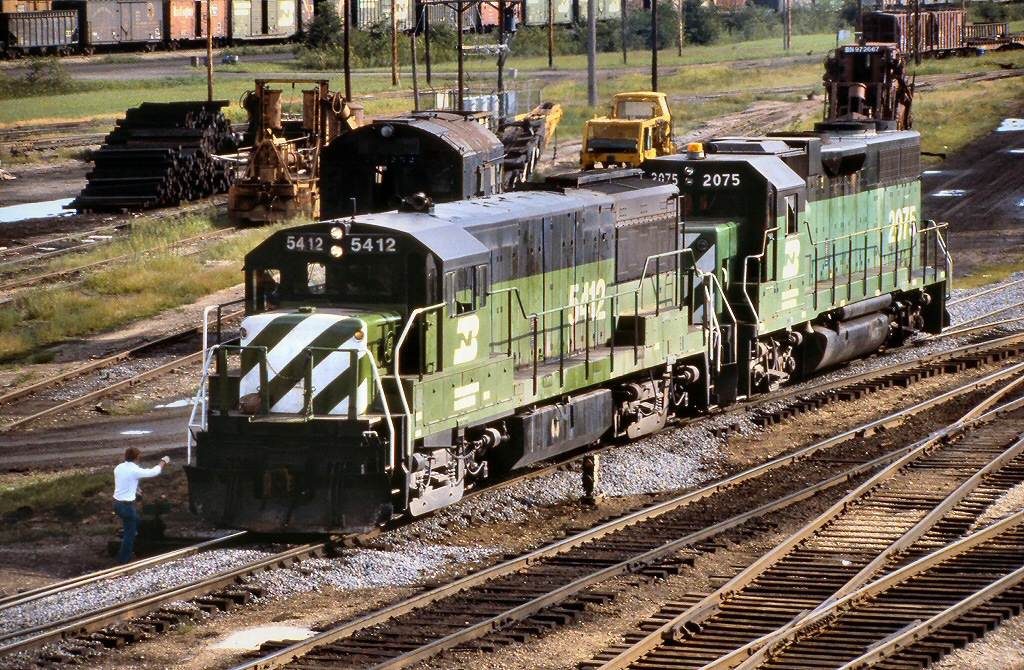

Burlington Northern U25B #5412 and GP38-2 #2075 run light towards the engine terminal in Galesburg, Illinois during August of 1978. The U-boat was built as Great Northern #2512 in 1965. Rob Kitchen photo.

Current Railroads

CSX Transportation

Norfolk Southern

Canadian National

Canadian Pacific

BNSF Railway

Kansas City Southern

Union Pacific

Indiana Rail Road

Iowa Interstate

Alton & Southern

Belt Railway of Chicago

Burlington Junction

Chicago Rail Link

Chicago, Fort Wayne & Eastern Railroad

Chicago, South Shore & South Bend

Chicago, St Paul & Pacific Railroad

Chicago Junction Railway

Chicago Port Railroad

Chicago Terminal Railroad

Crab Orchard & Egyptian Railroad

Cicero Central Railroad

Coffeen & Western Railroad

Decatur Central Railroad

Decatur Junction Railway

Decatur & Eastern Illinois Railroad

Effingham Railroad

Elwood Joliet & Southern Railroad

Evansville Western Railway

Gateway Industrial Railway

Illinois Railway

Illinois & Midland Railroad

Illinois Western Railroad

Indiana Harbor Belt

Iowa Interstate

Joppa & Eastern Railroad

Kankakee, Beaverville & Southern Railroad

Kaskaskia River Railroad

Keokuk Junction Railway

Manufacturers Junction Railway

Peru Industrial Railroad

Pioneer Industrial Railway

Port Harbor Railroad

The Prairie Line

Riverport Railroad

Shawnee Terminal Railway

South Chicago & Indiana Harbor Railway

Tazewell & Peoria Railroad

Terminal Railroad Association Of St. Louis

Toledo, Peoria & Western Railway

TransDistribution Brookfield Railroad

Vandalia Railroad

Vermilion Valley Railroad

Wisconsin & Southern

While at one time Illinois railroads topped out at an astounding 12,000+ miles of trackage today about half of that is still in operation (being part of granger country, most of this loss was agricultural branch lines).

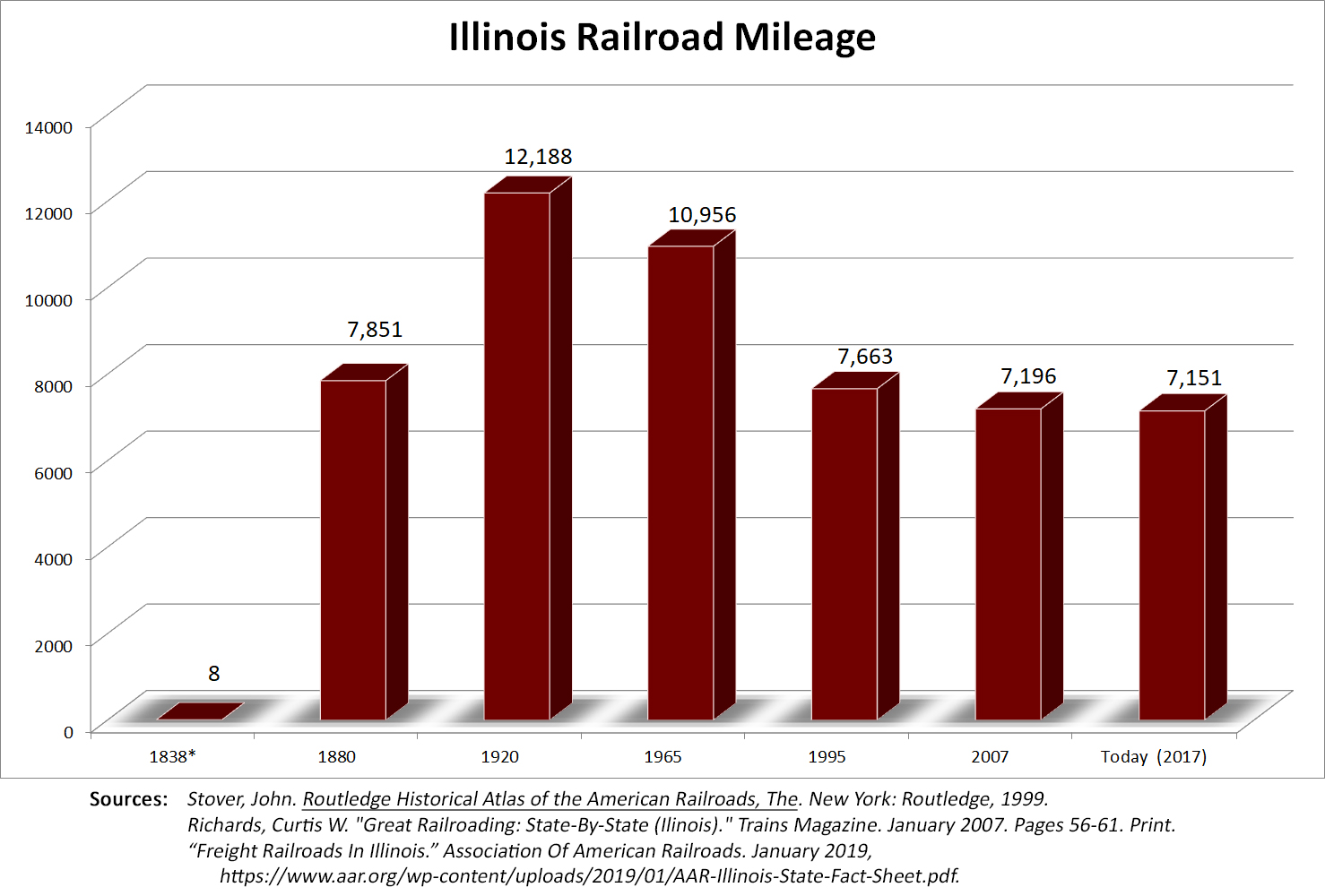

State Mileage Chart

First Railroad

* The first railroad to operate in Illinois was the the Northern Cross Railroad, which opened 55 miles between Springfield and Meredosia in 1842. This company also holds the distinction as the first to operate a steam locomotive in the state when a little 4-2-0, named "Rogers," rumbled over the initial 8 miles between Meredosia and Morgan City on November 8, 1838. The Northern Cross would go on to form part of the modern Wabash Railroad.

It’s not surprising that with the number of railroads still serving Illinois the state is home to several large facilities and rail yards.

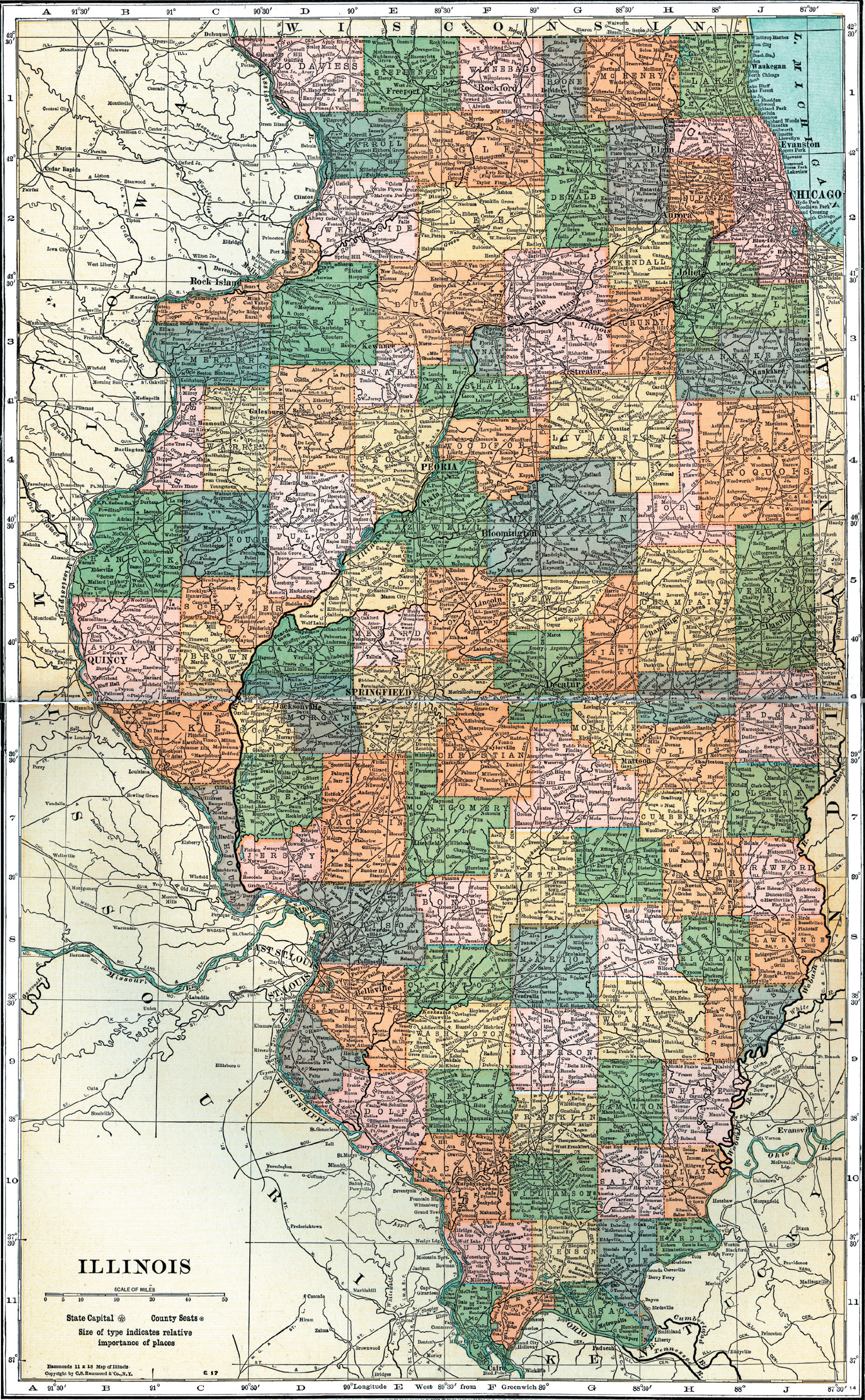

State Map (1920)

An Illinois railroad map from 1920 featuring the state's peak infrastructure in service at that time. As you can see, lines blanketed the state in every direction.

Some of these include Clearing Yard in southwest Chicago, which is a double-hump facility (Meaning a yard with a large rise at its entrance, or “hump,” which then is graded downhill until several corresponding yard tracks.

The freight car enters the hump and then proceeds downhill via gravity and enters whatever track it is assigned, which is a way to build and organize cars and trains.).

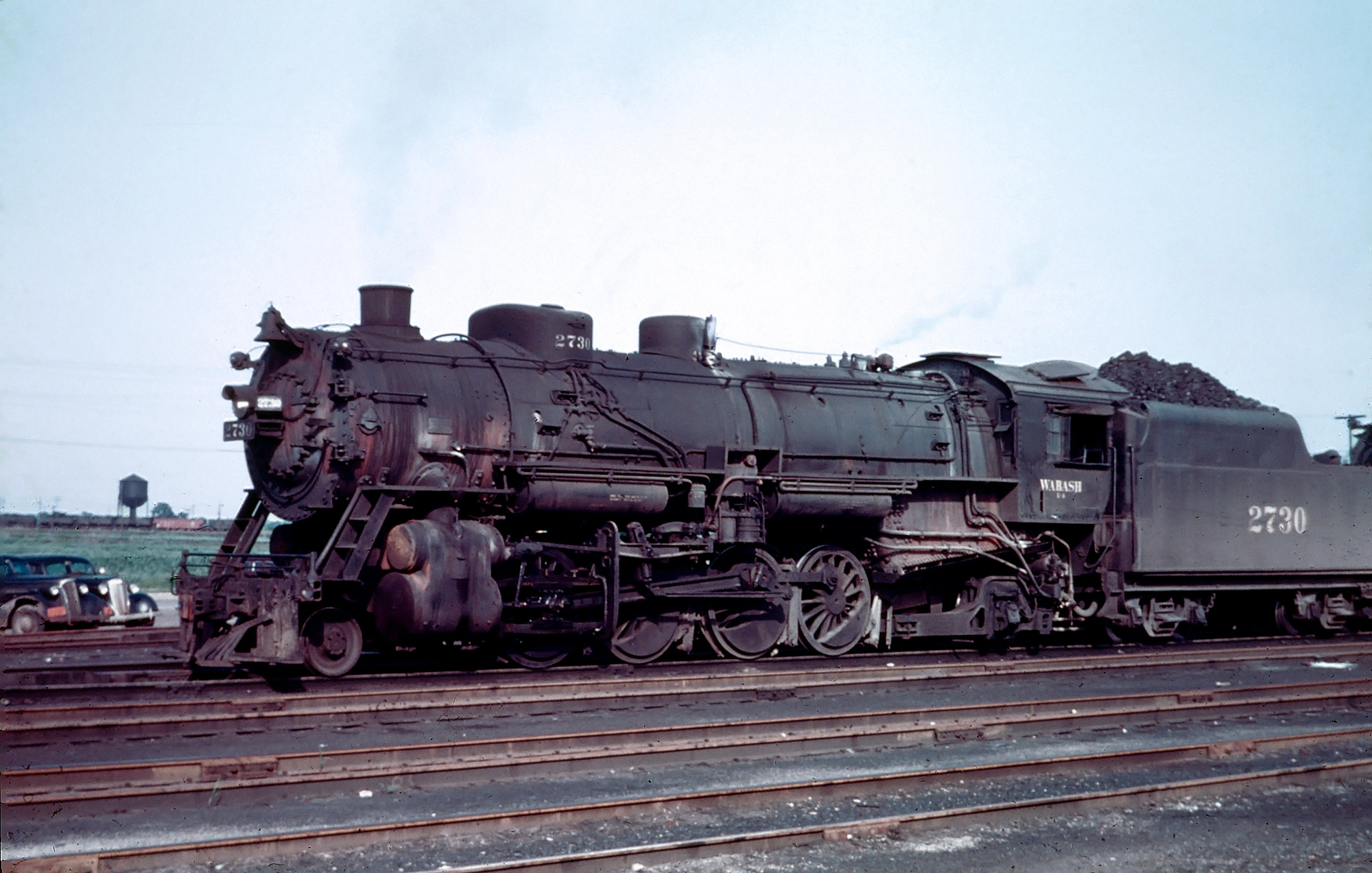

Wabash 2-8-2 #2730 is seen here late in her career at the shops and yard in Decatur, Illinois, circa 1950. The Class N-4 Mikado was manufactured by Alco in January, 1925 (serial 66113) and scrapped in December, 1951. Fred Byerly photo. American-Rails.com collection.

While the Golden Age of passenger trains has been gone for a half-century now Illinois railroading still features plenty of passenger trains.

Amtrak dispatches 28 trains a day from Chicago with names like the Empire Builder and Capitol Limited. The state is also home to one of the largest, and longest running, commuter train operations, Metra.

The commuter agency operates 11 routes over roughly 455 miles, dispatching some 94 trains each weekday! Illinois is also features the historic South Shore Line, an interurban serving South Bend and Chicago. And, to top it all, the historic Chicago Union Station still serves both Amtrak and Metra.

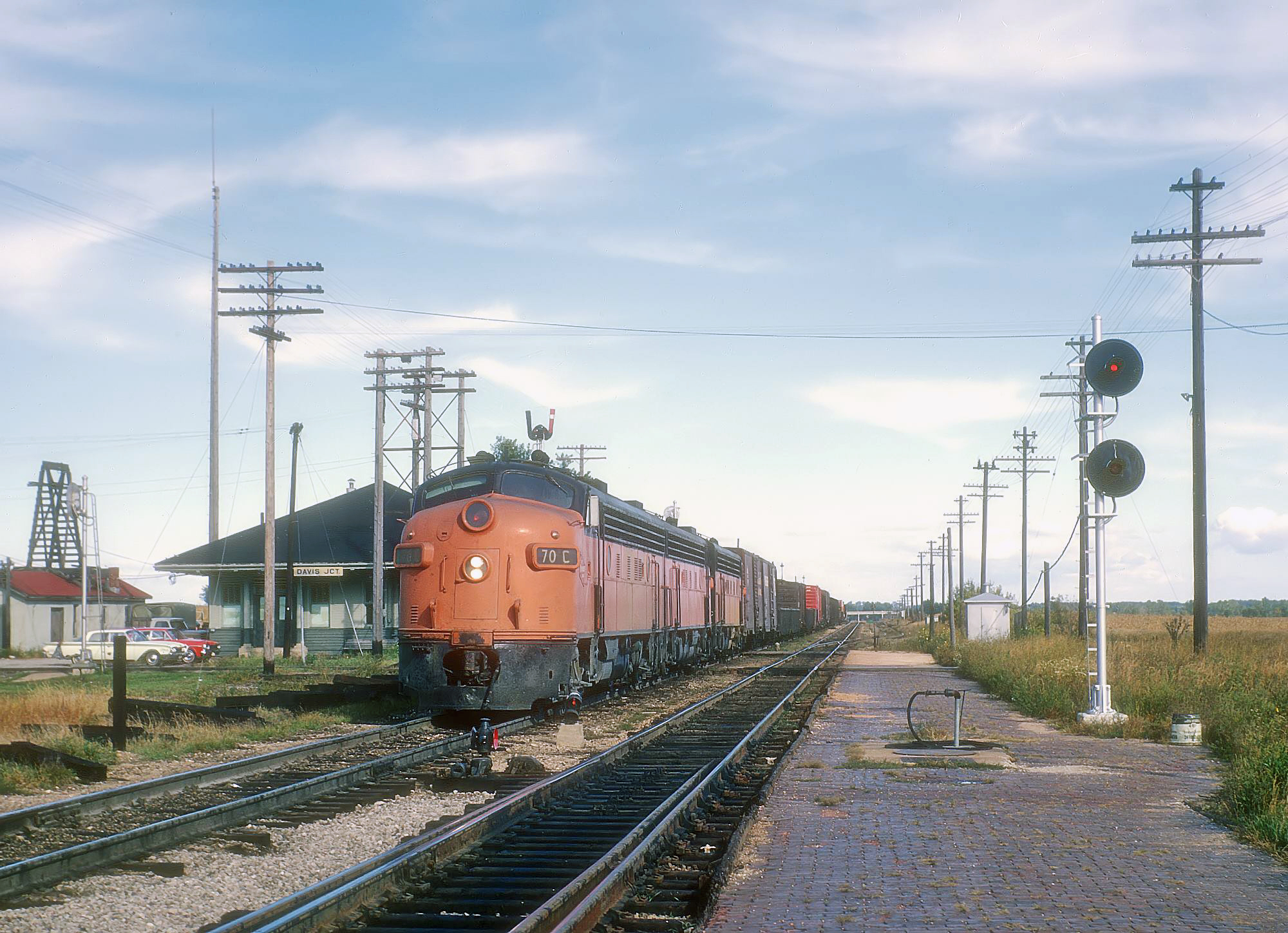

Milwaukee Road F7s, led by 70-C, at Davis Junction, Illinois; September, 1966. Rick Burn photo.

Railroad Museums and Attractions

Freight and passenger operations aside, Illinois is home to numerous railroad museums and tourist railroads such as the Illinois Railway Museum, which over the past 40 years has been able to amass a very impressive collection of rolling stock including several historic steam locomotives, classic diesel locomotives and even interurban street/trolley cars.

Not only does the museum own this equipment, many pieces are restored to operation and used many times throughout the year hauling excursions or in some other capacity

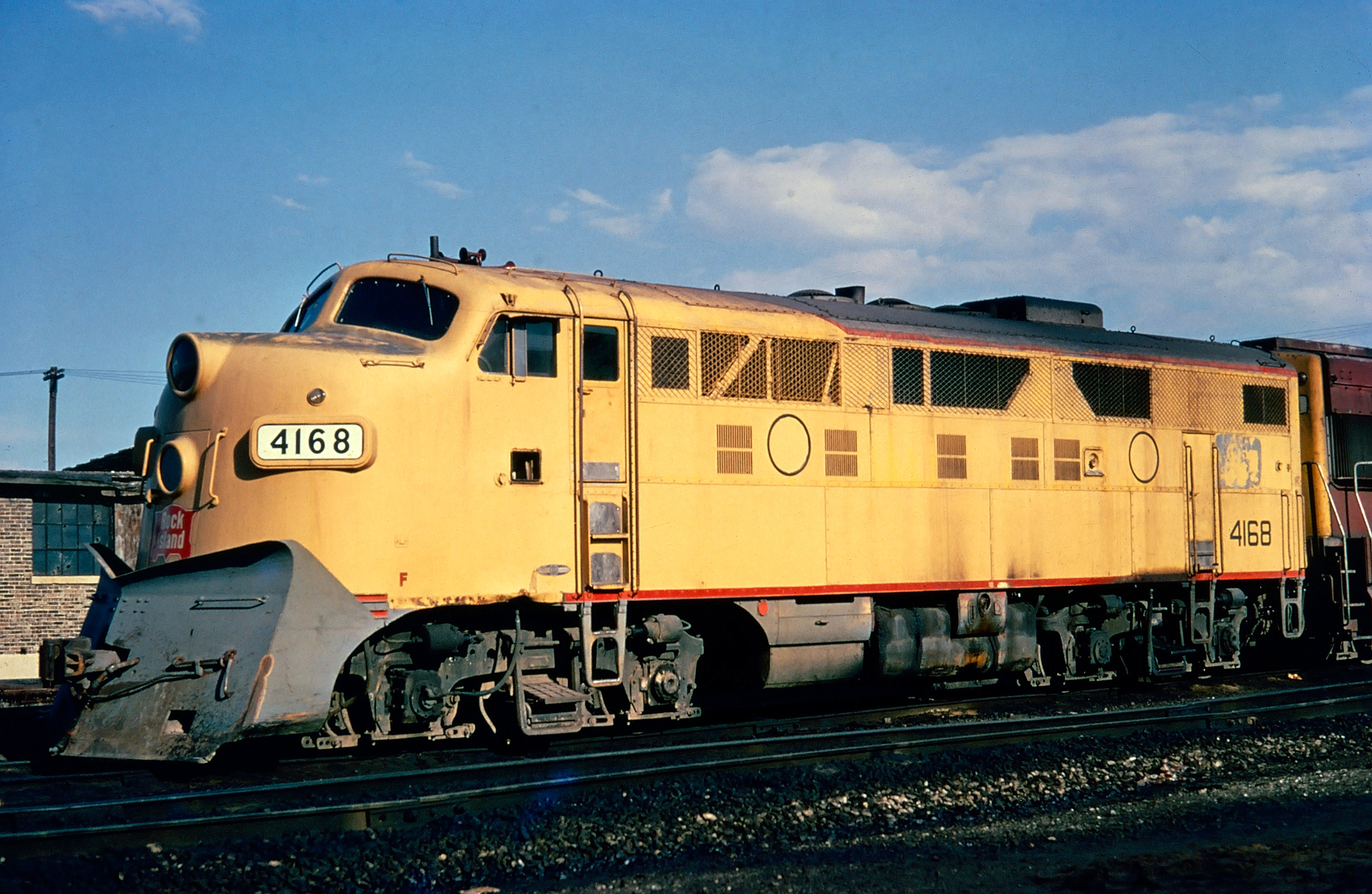

Rock Island F9Am #4168 at Silvis, Illinois, circa 1975. This unit was built as Union Pacific F3A #1412-A. It was sent back to EMD in 1958, rebuilt to F9 specs, and renumbered 539. It was sold to the Rock in 1972 and ultimately traded back to EMD in 1976. The big snow plow was custom-built by UP shop forces for heavy snows in the Pacific Northwest. American-Rails.com collection.

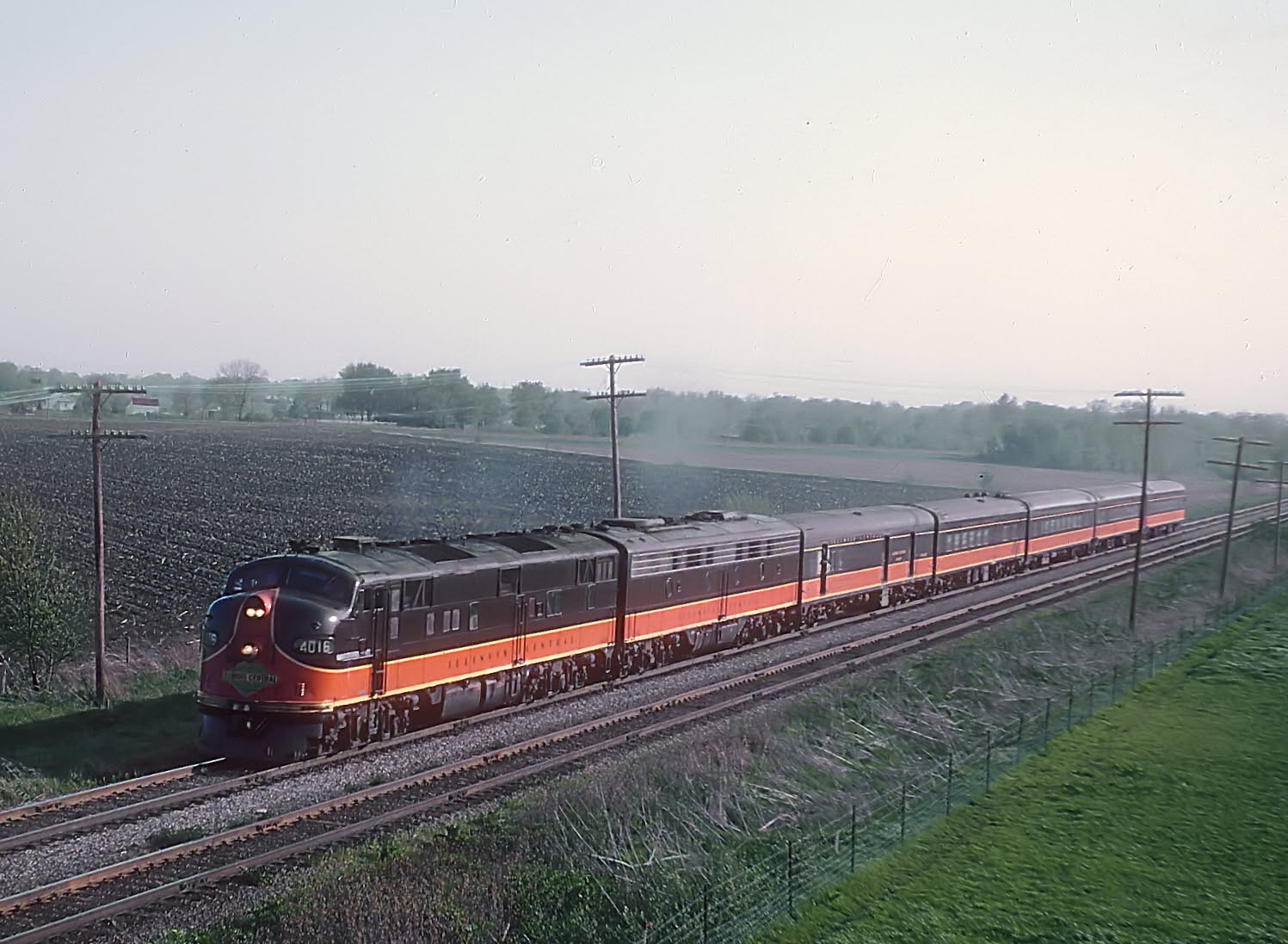

Illinois Central E7A #4016 has train 222, the Green Diamond at Highway 54 east of Springfield, Illinois in May, 1966. Rick Burn photo.

Others museums include:

Amboy Depot Museum

Chatham Railroad Museum

Depot Railroad Museum

Elizabeth Historical Society Depot Museum

Fox River Trolley Museum

Galesburg Railroad Museum

Historic Greenup Depot

Historic Pullman Foundation

Monticello Railway Museum

Silver Creek & Stephenson Railroad

Union Depot Railroad Museum

All in all, Illinois railroads offer a dizzying array of operations! Whether you are a big time railroad enthusiast, vacationer after something a little different to do, or simply a commuter looking for a better alternative than the highway congestion the state definitely features a little of everything!

Photos

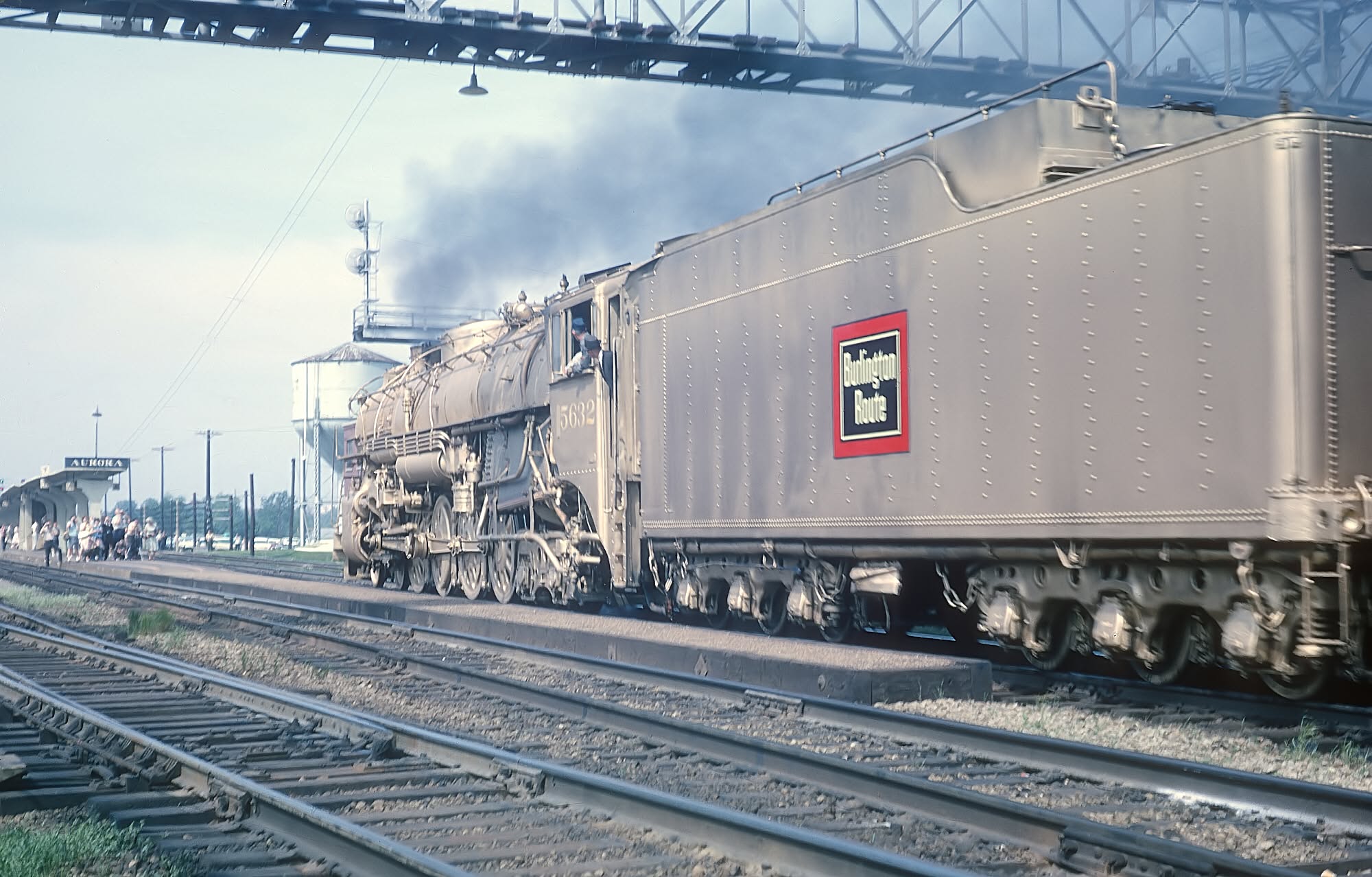

Burlington 5632 was wearing gold to celebrate the railroad's centennial of its Chicago-Aurora main line. Marty Bernard caught her in Aurora, Illinois on May 23, 1964 as she is seen here approaching the station.

It's the early Burlington Northern as former CB&Q GP20 #2057 (ex-#921) and U28C #5653 (ex-#564) work freight service at Downers Grove, Illinois. Marty Bernard photo.

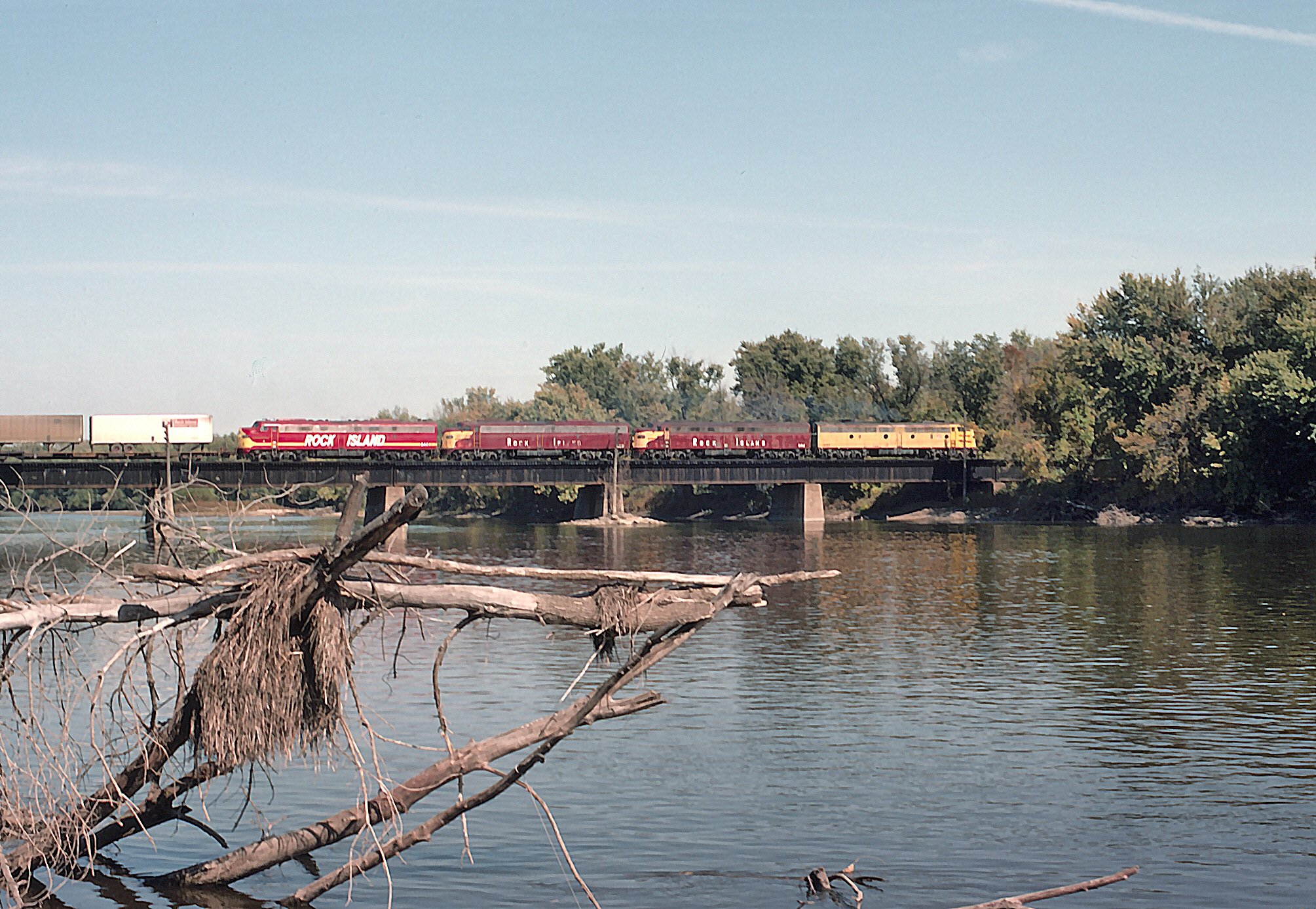

Rock Island E8As #657, #654, #653, and #644 lead trailers eastbound over the Rock River at Colona, Illinois in 1975. Karl Miller photo.

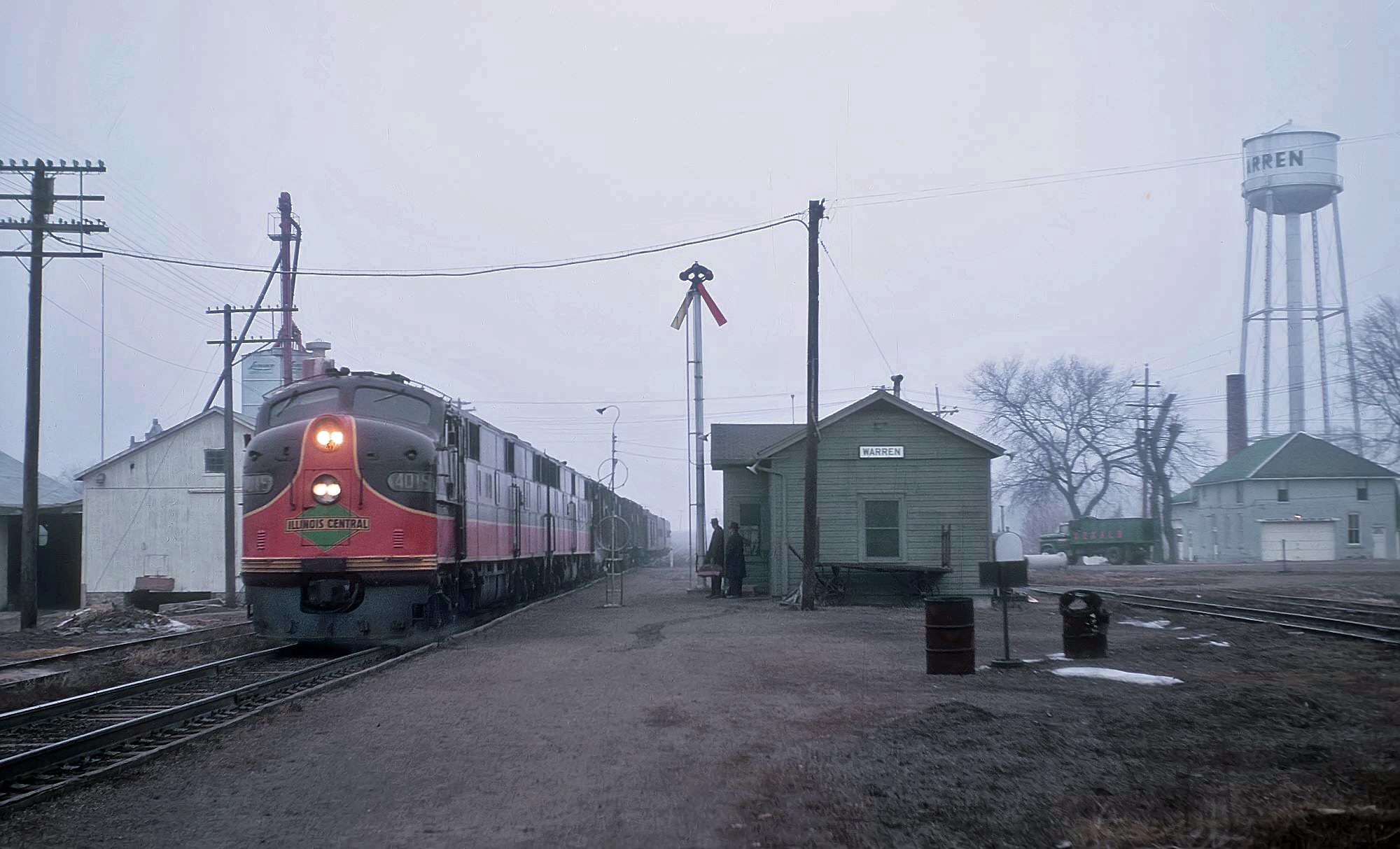

Illinois Central's train #14, the eastbound "Land O'Corn," stopped at Warren, Illinois on a March morning in 1967. Rick Burn photo.
