"Electroliners" (Trains): Interior, Restoration, History

Last revised: September 11, 2024

The interurban and streetcar industries could not celebrate many achievements in terms of either the technologies they introduced or their lasting legacy on society in general.

However, one of the significant developments included the Electroliners built for the Chicago, North Shore & Milwaukee Railroad (the North Shore Line) by the St. Louis Car Company.

Built during the early era of the streamliner craze in the railroad industry, the two trainsets were eye-opening for two reasons: first was the fact that the interurban industry was on its last stand by the early 1940s when the streamlined trains were introduced; and second, interurbans were not generally thought of as high speed operations.

The trainsets were certainly one of the final major orders ever taken for an interurban and easily the flashiest ever built. Today, both sets remain preserved in Rockhill Furnace, Pennsylvania and at the Illinois Railway Museum.

Photos

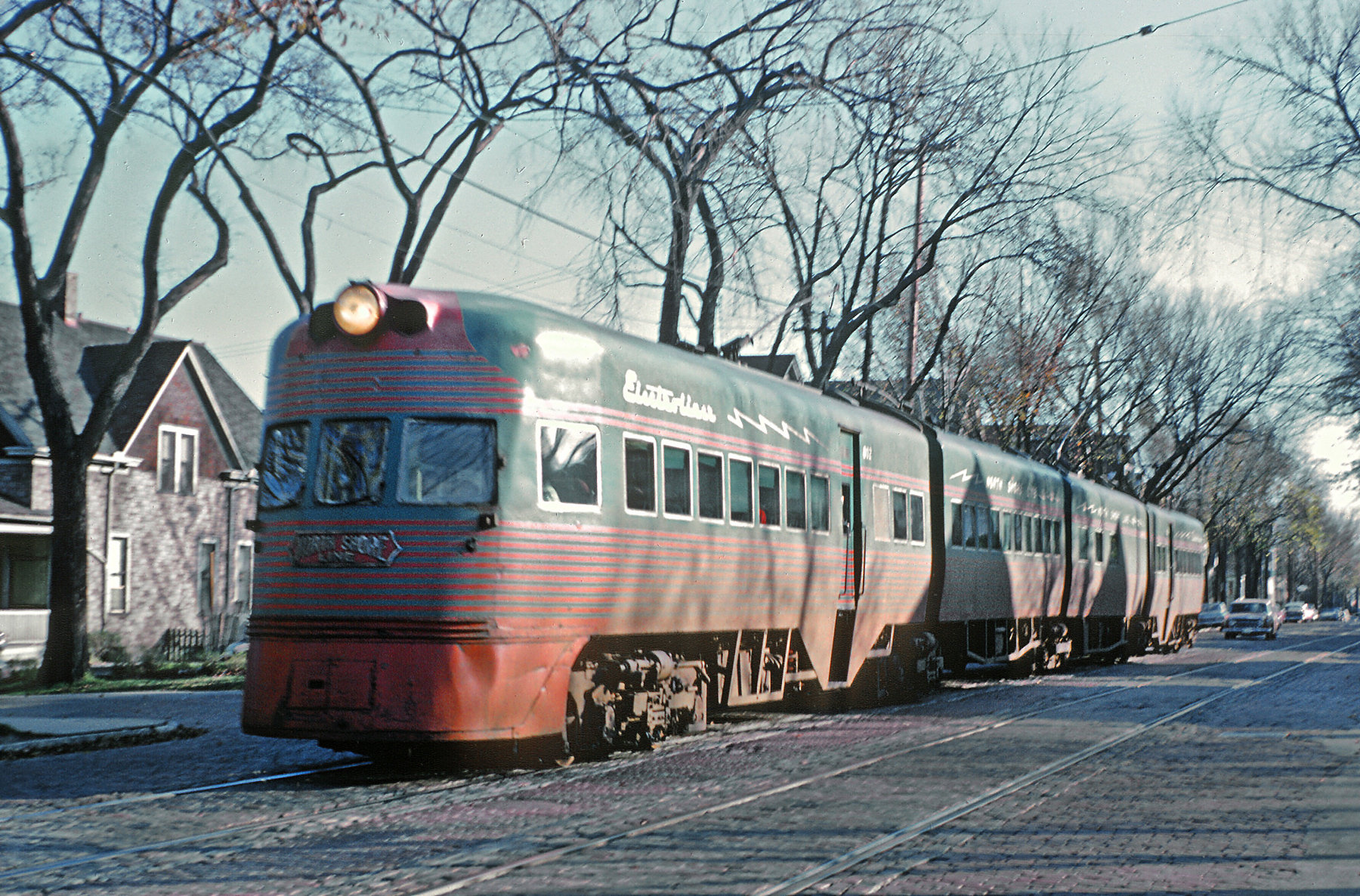

An "Electroliner" set leads the North Shore's train #805 down South 5th Street near West Orchard Street in Milwaukee on October 21, 1962. Roger Puta photo.

History

The North Shore Line's Electroliners was the interurban's last gasp at retaining its passenger traffic, which had been slowly withering away since after 1910. For most street railway and interurban lines the coming of the automobile put an end to an industry that was just a few decades old.

The 1920s and the Great Depression later that decade bankrupted and shutdown many intermediate lines while the strongest companies carried on until around the start of World War II.

However, even most of these operated in the red for many years before finally discontinuing operations. Only a select few, usually the largest serving the biggest cities (or with a substantial amount of freight traffic such as the Piedmont & Northern) survived past World War II.

Specifications

Builder	St. Louis Car Company
Date Completed	February, 1941
Numbers	801-802 (Set 1), 803-804 (Set 2)
Type	Double-Ended, Four-Section Articulated
Seating	120 (Coaches) 26 (Tavern-Lounge)
Length	155 Feet, 4 Inches
Width	9 Feet, 2 Inches
Height	12 Feet, 3 ¾ Inches
Weight	210,500 Lbs
Trucks	Double-Equalizer
Truck Manufacturer	General Steel Casting Corporation
Wheel Size	31 ¼ Inches
Wheelbase	7 Feet, 2 Inches
Motor Type	1443-B1 (8)
Motor Horsepower	125 HP
Motor Manufacturer	Westinghouse
Control Stand Model	HB-XMA-1
Control Stand Manufacturer	Westinghouse
Brake Schedule	HSC
Brake Schedule Manufacturer	Westinghouse

The Chicago, North Shore & Milwaukee Railroad was able to whether the depression and financial difficulties between 1910 and the end of World War II primarily because of its significant amount of commuter and long distance traffic between its two largest cities (Chicago and Milwaukee).

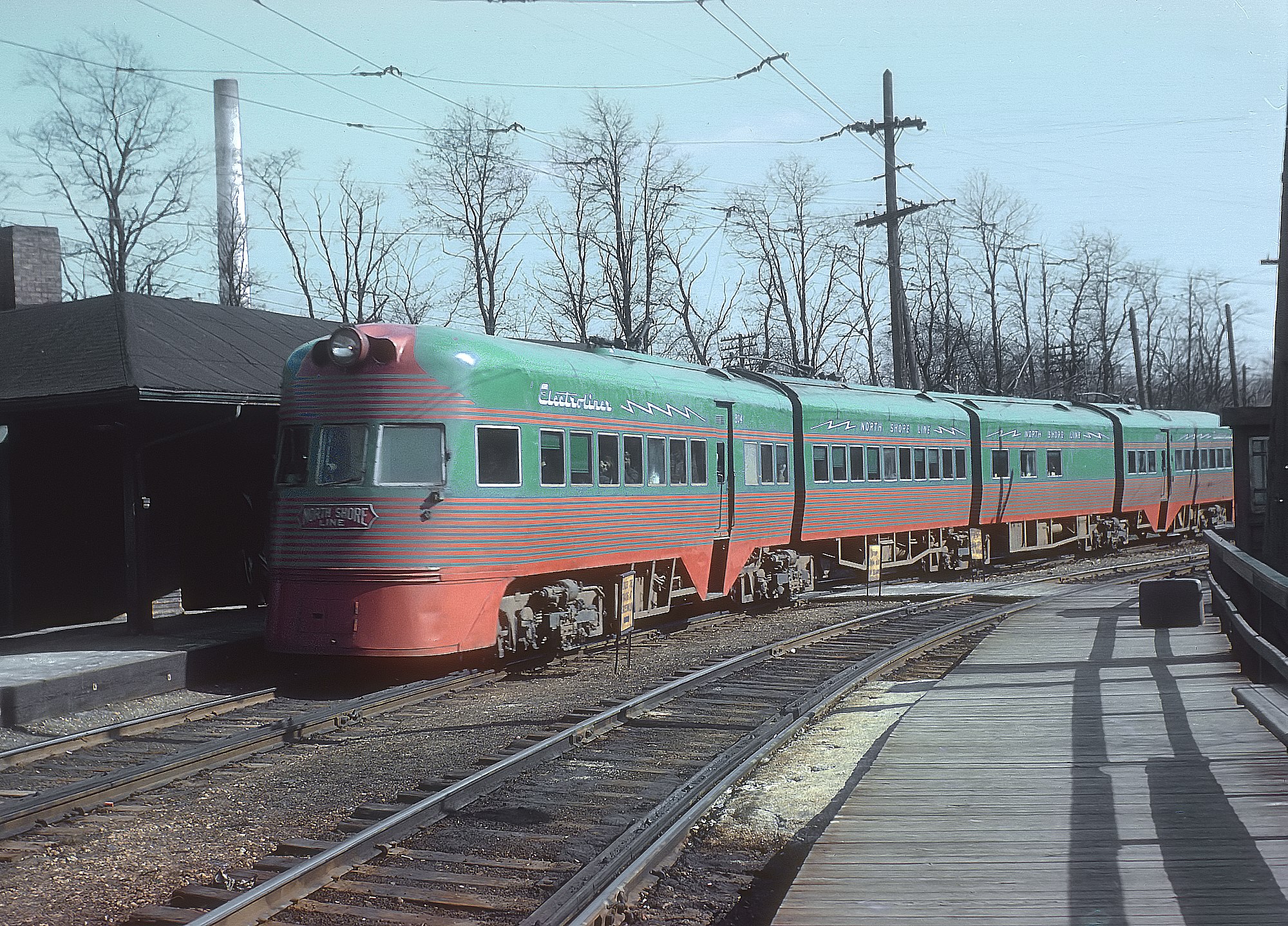

A North Shore Line "Electroliner" set has train 805 at North Chicago Junction, Illinios in May, 1962. Rick Burn photo.

By the 1930s the company was completing several main line improvement projects, which increased transit times and reduced delays. As another means of upgrading its service, the company ordered its final new equipment in 1941; two streamlined, articulated trainsets from the St. Louis Car Company dubbed Electroliners.

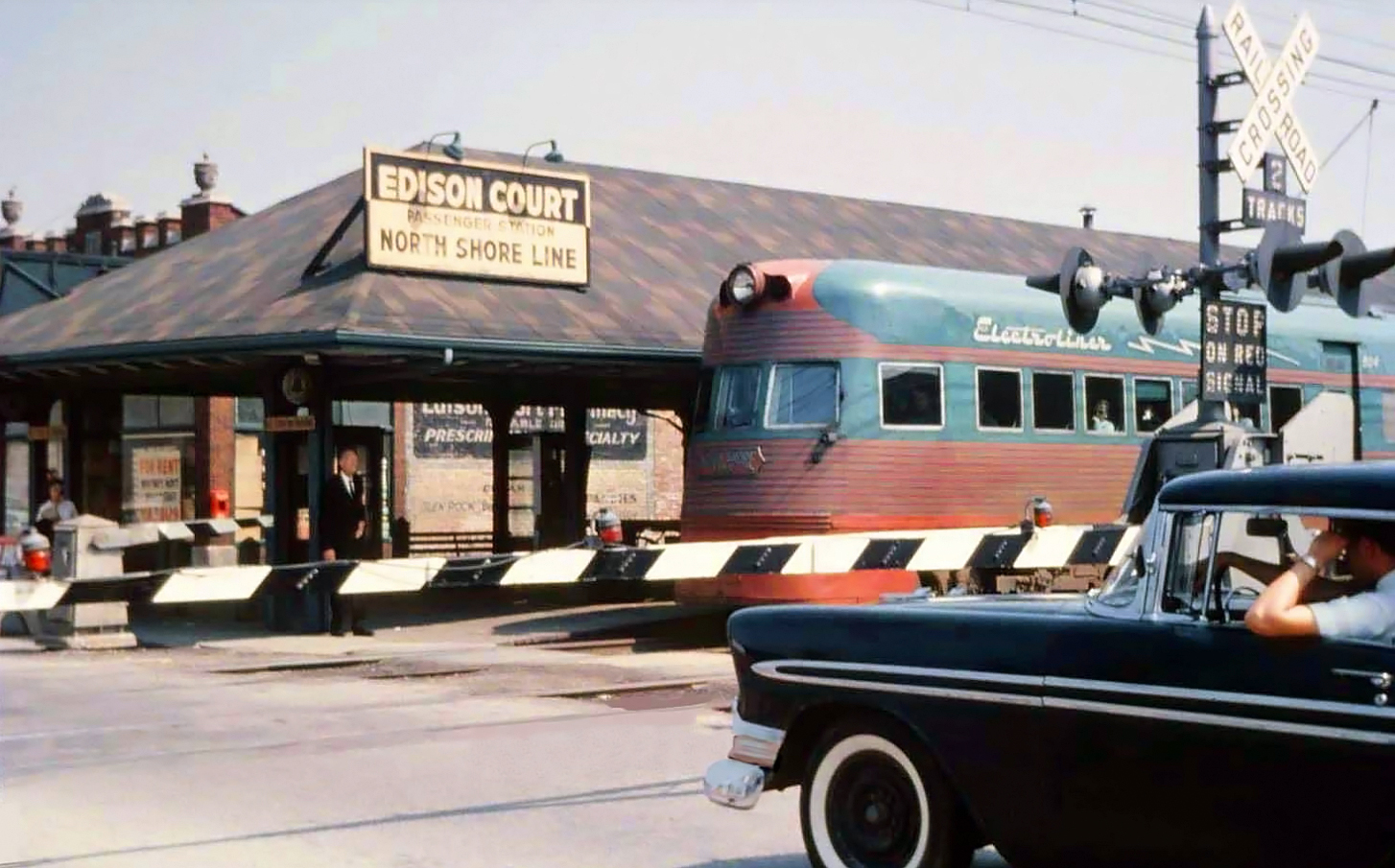

One of the North Shore Line's "Electroliner" trainsets appears to be boarding at the Edison Court Station in Waukegan, Illinois, circa 1960. Note the Chevrolet "Bel Air" in the foreground.

If the trains resemble similar trainsets built at the time for main line railroads like the Chicago, Burlington & Quincy's Zephyrs or Union Pacific's M-10000 it is because the Electroliner was partially inspired by them.

Despite the interurban industry in severe decline by the early 1940s, St. Louis remained one of the preeminent builders and did an excellent job in the design and construction of the trainsets. They were designed in such a way that a power car was located on each end so as not to necessitate turning.

Each trainset also featured a rather unique numbering system. Overall, there were four cars to each set but they were numbered as pairs of two. For instance, one trainset held #801-#802 while the other was listed as #803-#804.

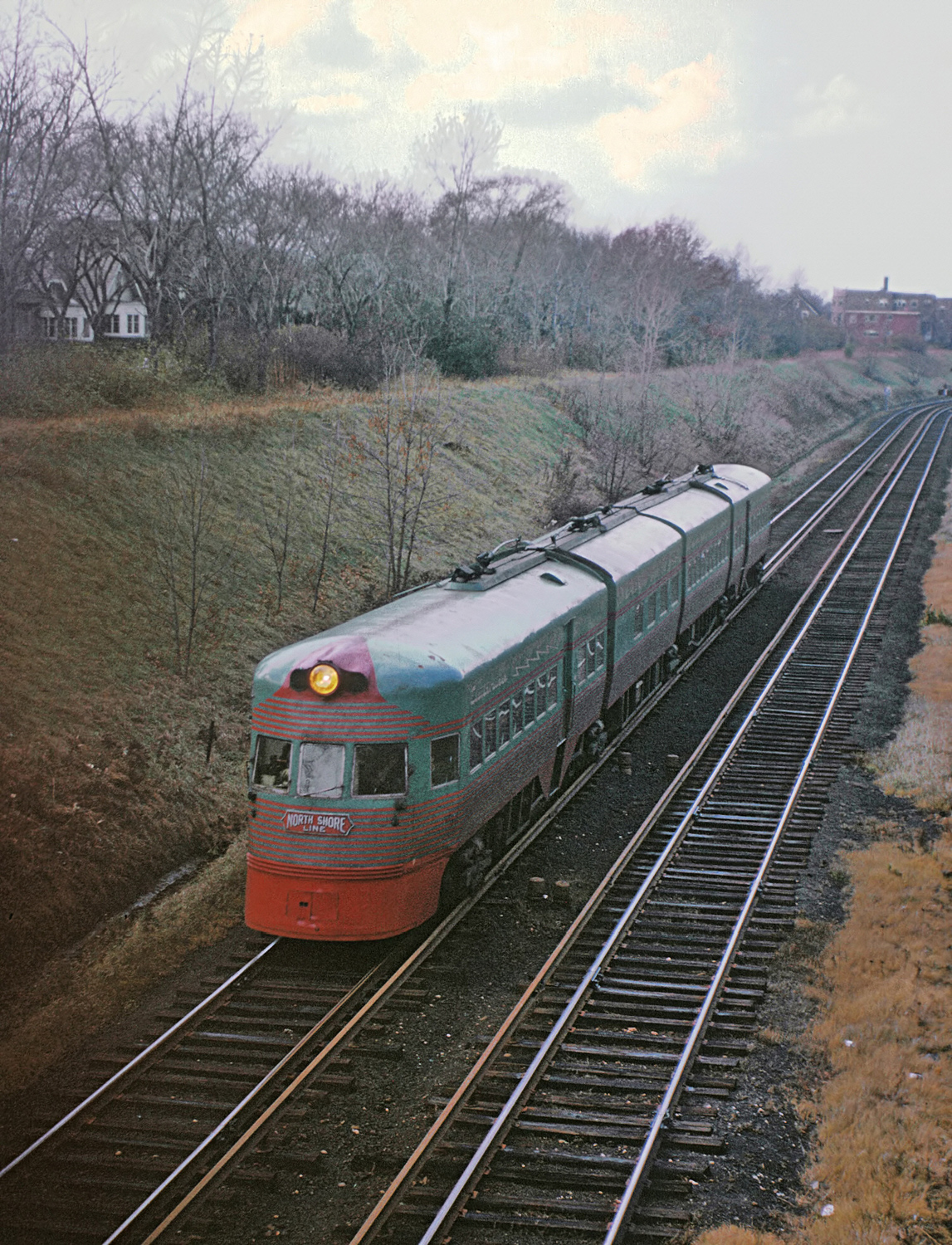

An Electroliner set has train 803 leading a fan trip just west of Lake Bluff, Illinois at Green Bay Road in February, 1961. Rick Burn photo.

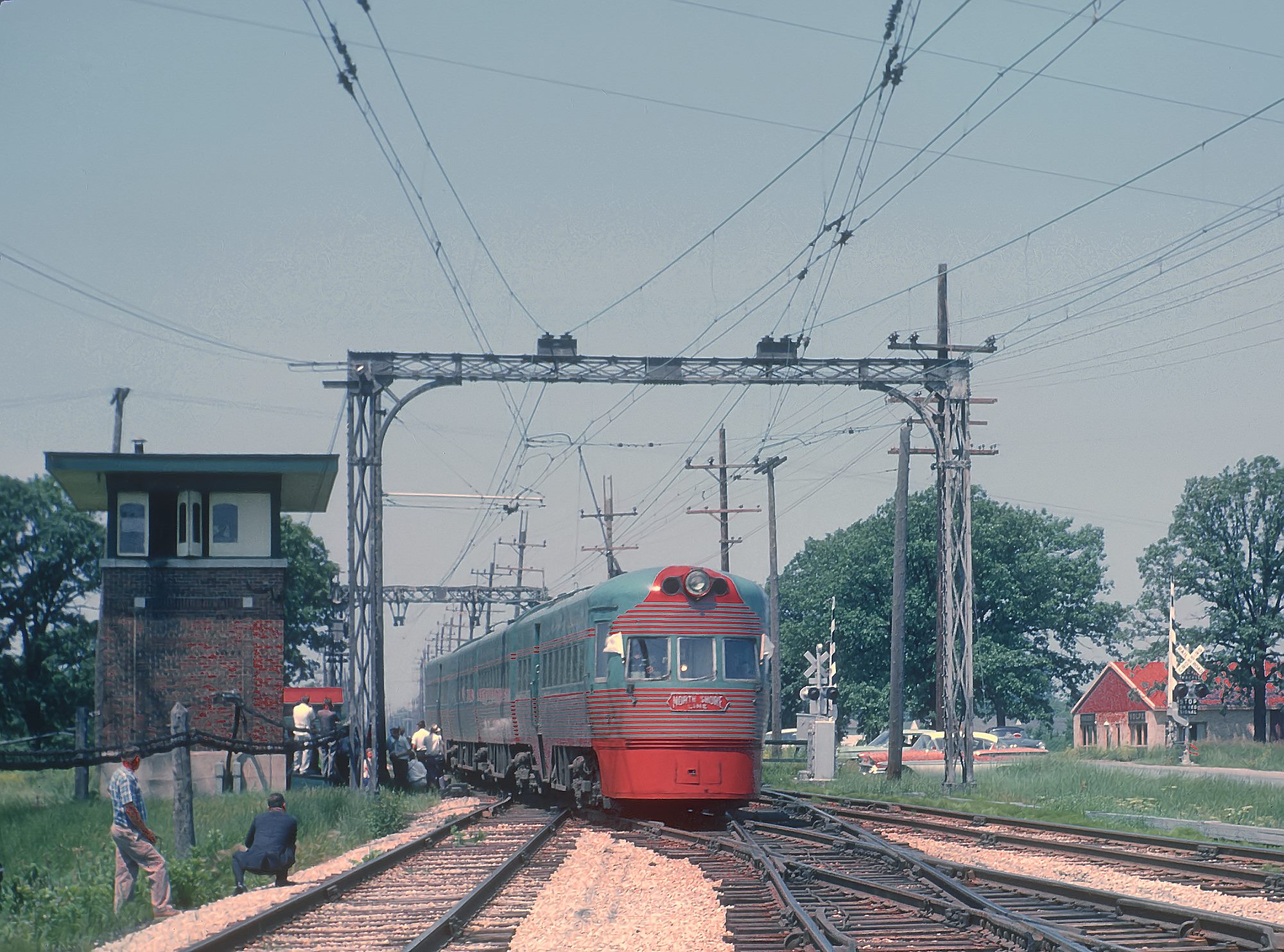

A North Shore Line "Electroliner" set with a fan trip at South Upton Tower in Lake Bluff, Illinois; June, 1962. Rick Burn photo.

Interior

As for the train's interior it was much more luxurious than most other interurban car setups. Three of the four cars were equipped with luxury coach seating while a middle car featured a luxury-lounge.

Each trainset could hold a maximum of 146 passengers; each power car doubled as a luxury coach and held 40 passengers each (one car was split with a section for smoking that held 10 individuals), one center car held 40, and the lounge featured an occupancy of 26.

As one might imagine the trains were immediately designated as the North Shore Line's premier runs offering one way, through fares between Milwaukee and Chicago daily.

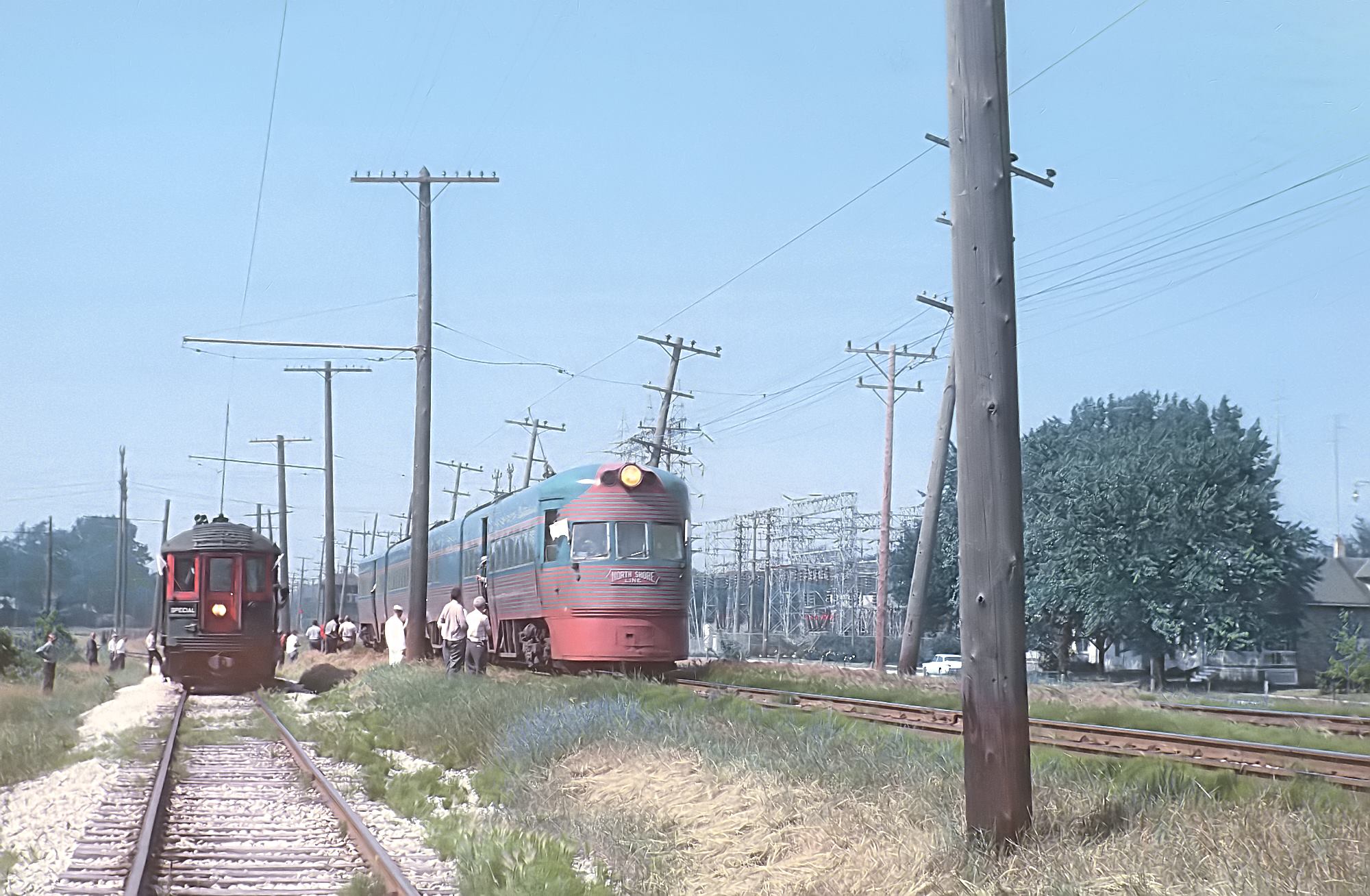

A North Shore Line 'Electroliner' set and car #744 with fan trips south of the Milwaukee Road crossing in Racine, Wisconsin; June, 1962. Rick Burn photo.

Operation

Surprisingly, the new Electroliners proved to be quite successful for the CNS&M. Capable of operating at speeds of up to 90 miles per hour they were specifically built to also handle the rough track and sharp curves inherent with interurban trackage (although the North Shore featured some of the best maintained routes of any interurban).

For 22 years they remained in regular service on the North Shore despite the company continually losing traffic and revenue. With freight traffic never providing more than 25% of its profits it was likely inevitable that the company would eventually succumb to the losses.

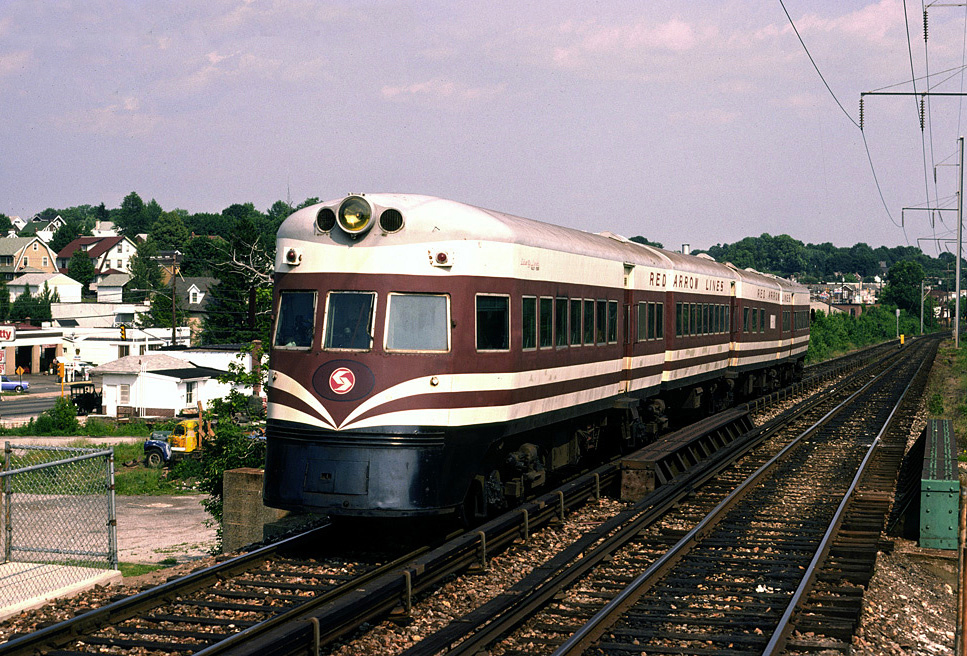

After the North Shore shutdown the Philadelphia Suburban Transportation Company purchased both sets, renaming them "Liberty Liners." One is seen here at Ardmore, Pennsylvania in May of 1976. Drew Jacksich photo.

Preservation

In January, 1963 the sets were retired following the North Shore's shutdown. They were subsequently sold to the Philadelphia Suburban Transportation Company which renamed them as Liberty Liners; set 801-802 was known as Valley Forge while 803-804 as Independence Hall.

Also known as the Red Arrow Lines, the PSTC painted the sets in a beautiful red, white, and blue scheme and kept in continuous operation for another 13 years before finally being retired in 1976.

Today, both sets remain fully preserved; #801-#802 at the Illinois Railway Museum in it original North Shore livery (and still operational) while #803-#804 is at the Rockhill Trolley Museum preserved in its Liberty Liner livery.

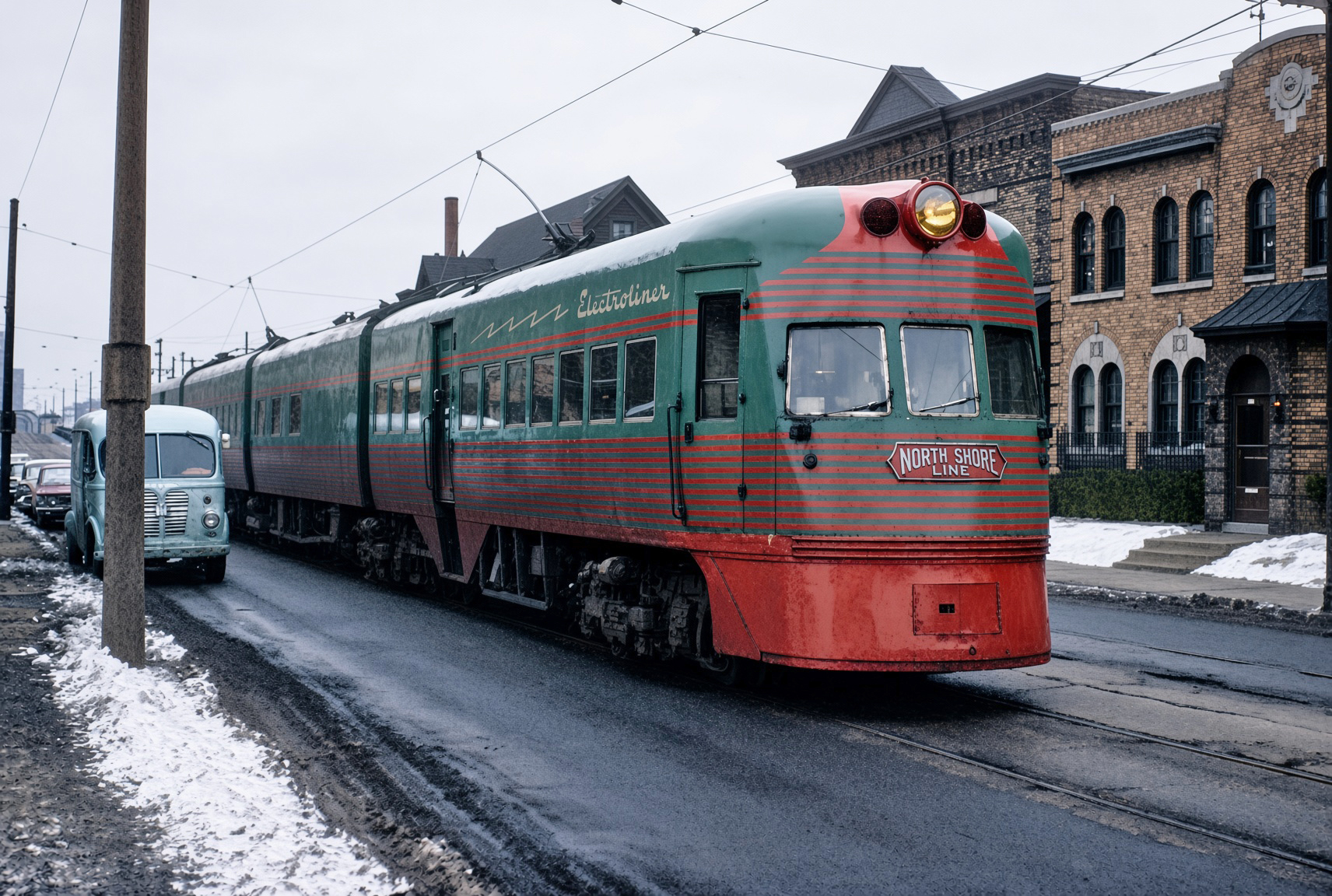

An "Electroliner" set rolls down 6th Street in Milwaukee on January 3, 1963. Marty Bernard photo.

Sources

Hilton, George and Due, John. Electric Interurban Railways in America, The. Stanford: Stanford University Press, 2000.

Johnston, Bob and Welsh, Joe. Art Of The Streamliner, The. New York: Andover Junction Publications, 2001.

Middleton, William D. Traction Classics: The Interurbans, Extra Fast And Extra Fare. San Marino: Golden West Books, 1985.

Middleton, William D. Traction Classics: The Interurbans, Interurban Freight. San Marino: Golden West Books, 1985.

Schafer, Mike and Welsh, Joe. Streamliners, History of a Railroad Icon. St. Paul: MBI Publishing, 2003.

Solomon, Brian. Streamliners: Locomotives And Trains In The Age Of Speed And Style. Minneapolis: Voyageur Press, 2015.
