2-4-2 "Columbian" Locomotives

Published: February 18, 2025

By: Adam Burns

The history of the 2-4-2 steam locomotive, often referred to as the "Columbian" type, is a fascinating tale of engineering innovation during a pivotal era of early railroad expansion.

Its story weaves through the corridors of technological advancement, reflecting the shifting needs of rail travel during the mid-19th century as trains became heavier and demand for rail service increased prodigiously.

Notable systems like the Chicago, Burlington & Quincy; New York & New Haven (New Haven); and the Philadelphia & Reading all acquired a few examples.

However, the two-wheeled leading truck was poorly equipped for high-speed operations on the extensive rail networks of North America. Some of these were subsequently modified to the 4-4-2 Atlantic configuration, while others were adapted to the 4-6-0 Ten Wheeler arrangement.

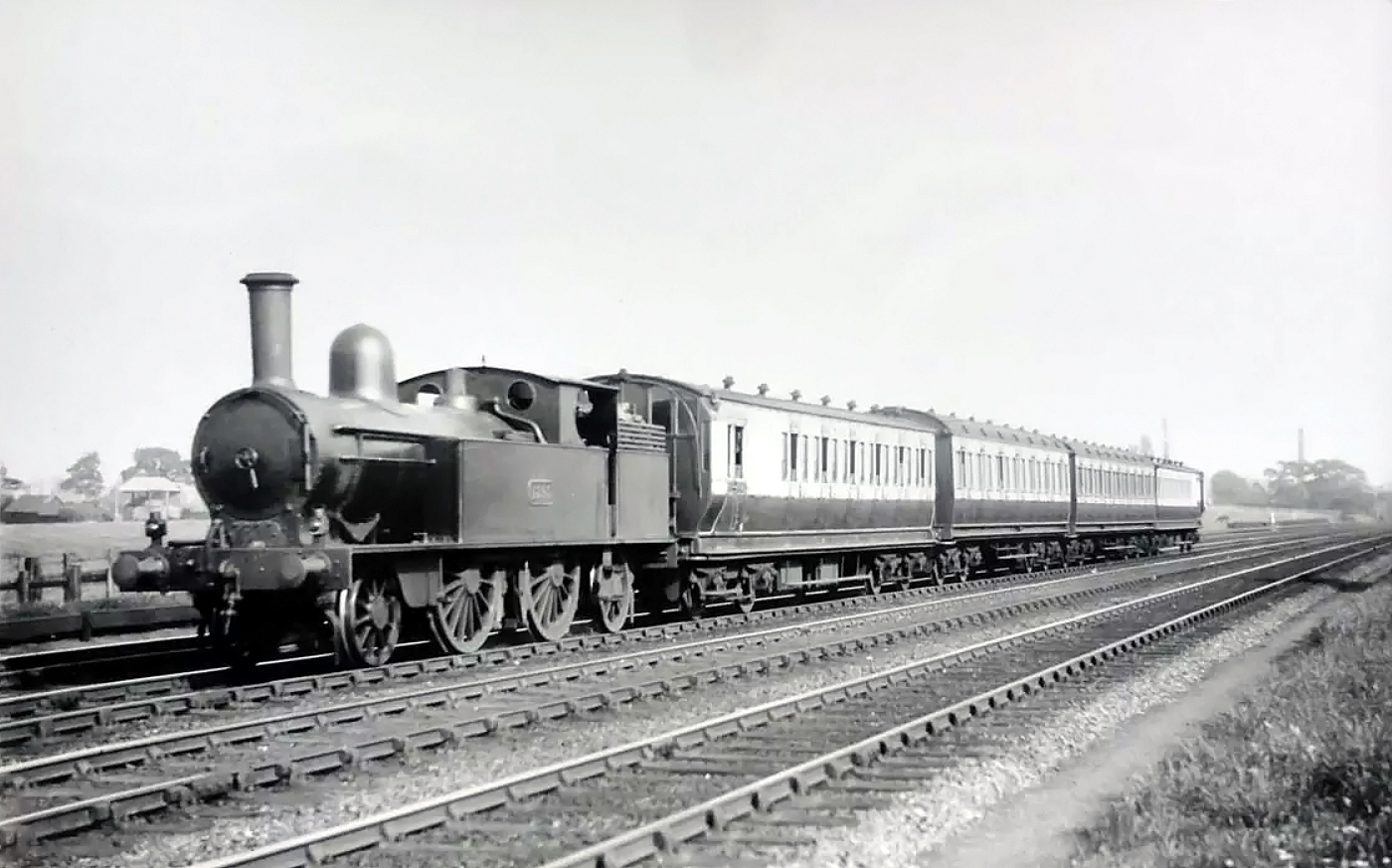

A 2-4-2 locomotive in use at the North Staffordshire Railway in England.

Origins and Development

The 2-4-2 configuration comprises two leading wheels, four driving wheels, and two trailing wheels. The key characteristic of the design is its balance between speed, power, and stability, making it suitable for both passenger and freight services.

The genesis of the arrangement can be traced back to the Golden Age of steam locomotive development in the late 19th century. This period was marked by rapid industrial growth and an increasing demand for efficient railway services.

The need for locomotives that could handle a variety of routes, including sharp curves and uneven tracks, without sacrificing speed or pulling power led engineers to experiment with different wheel arrangements.

U.S. Development

The first 2-4-2 was built by the Baldwin Locomotive Works as a demonstrator tender-type locomotive showcased at the 1893 Columbian Exposition, which subsequently gave rise to the type's name.

This locomotive was notable for its impressive seven-foot-tall driving wheels and was among the pioneering tender-equipped locomotives incorporating a trailing truck. This innovation allowed the firebox to be positioned more freely, rather than constraining it between or above the drive wheels, significantly influencing locomotive design.

The placement of the trailing truck provided more stability at higher speeds, a feature that set the Columbian apart from similar locomotives of that era. This design was particularly advantageous for trains that required both quick responsiveness and the ability to haul heavier loads.

Adoption and Adaptation

As the benefits of the 2-4-2 design became apparent, some railroads began to adopt it. The configuration was particularly popular for suburban passenger services, where the need for quick acceleration and frequent stops was paramount. The Columbian type found a loyal following not only in the United States but also in the United Kingdom, South Africa, and Australia.

The initial British adoption of the 2-4-2 wheel configuration can be traced back to locomotive no. 21, White Raven, which was delivered to the St Helens Railway by James Cross of Sutton Works in 1863.

This locomotive was soon reconfigured into a 2-4-0 tender locomotive and eventually incorporated into the rolling stock of the London and North Western Railway (L&NW).

Several other railway companies produced substantial numbers of locomotives featuring this configuration. Notably, the Lancashire and Yorkshire Railway (L&YR) constructed 330 such locomotives from 1889 to 1911.

The North Eastern Railway produced 60 between 1886 and 1892, and the Manchester, Sheffield, and Lincolnshire Railway manufactured 49 units from 1889 to 1898. A preserved example of these is John Aspinall's Class 5 locomotive, developed for the L&YR in 1889, which is currently housed at the National Railway Museum in York.

Logging Railroads

The tank design was also popular with U.S. logging operations, where the 2-4-2 was most widely utilized.  Names like Bear Harbor Lumber, Gale Lumber Company, Hastings Lumber, Poitevent & Favre Lumber Company, W B Harbeson Lumber Company, and Pacific Lumber Company all operated 2-4-2Ts to pull logs out of the forest.

Interestingly, these designs were still in production into the early 20th century.  In addition, Hawaiian sugar plantations utilized small 2-4-2Ts to move sugar cane including Hawaiian Sugar, Honokaa Sugar Company, and Kahului Railroad.  The Hawaii Railway Company on the "Big Island" also operated both standard 2-4-2s and the 2-4-2ST in service.

Technical Evolution

The engineering behind the 2-4-2 evolved rapidly as railroads expanded. Initially, these locomotives were predominantly fired by coal, which called for innovations to improve fuel efficiency and range. The trailing wheels' ability to support a larger and deeper firebox allowed engineers to use better combustion techniques, increasing the power output from these steam engines.

Significance and Decline

The legacy of the 2-4-2 is tied to their versatility and timing within the history of rail transport. They arrived at a period where railways were the backbone of industry and personal travel, playing a central role in economic expansion and the mobilization of people across growing urban landscapes.

However, the decline of the configuration was as inevitable as was its rise. By the early 20th century, the emergence of more powerful locomotive designs such as the 4-4-2 and 4-6-2, allowed for faster travel and longer trains, diminishing the demand for early types like the Columbian.

Preserved Examples

Conclusion

The 2-4-2 stands as an intersection of history, engineering, and the changing landscapes of industrial society. Its journey from a modest innovation born out of necessity to a key player in the global rail expansion reflects the adaptability and ambition of an era devoted to progress. While the tracks may have grown quiet, the story of the 2-4-2 lives on, remembered by historians and railway enthusiasts alike as a symbol of a bygone era of steam power and rail adventure.
