Algoma Central Railway: Map, Logo, Timetable, Rosters

Last revised: August 23, 2024

The Algoma Central Railway was a historic Ontario short line which connected Hearst with Sault Ste. Marie. The road's early years were somewhat rocky as its promoter struggled to carry out its completion.

His initial hope was in establishing a deep water port along the Hudson Bay for the transportation of iron ore but these dreams fell through. Ultimately, new owners completed a more modest system of slightly less than 300 miles.

While it never reached the bay the railroad did become profitable operating a spectacularly scenic route, particularly through the Agawa Canyon. Its beauty offered an unexpected benefit, popular rail tours. These trains maintained a high level of demand through the 2000's.

By the 1990's the Algoma Central Corporation had broadened its business portfolio and was no longer interested in its rail division.

As a result the railroad was sold to Wisconsin Central, Ltd. which was subsequently acquired by Canadian National shortly thereafter. Since 2014 CN has threatened to mothball the entire main line although the tour trains continue to operate as of this writing.

Photos

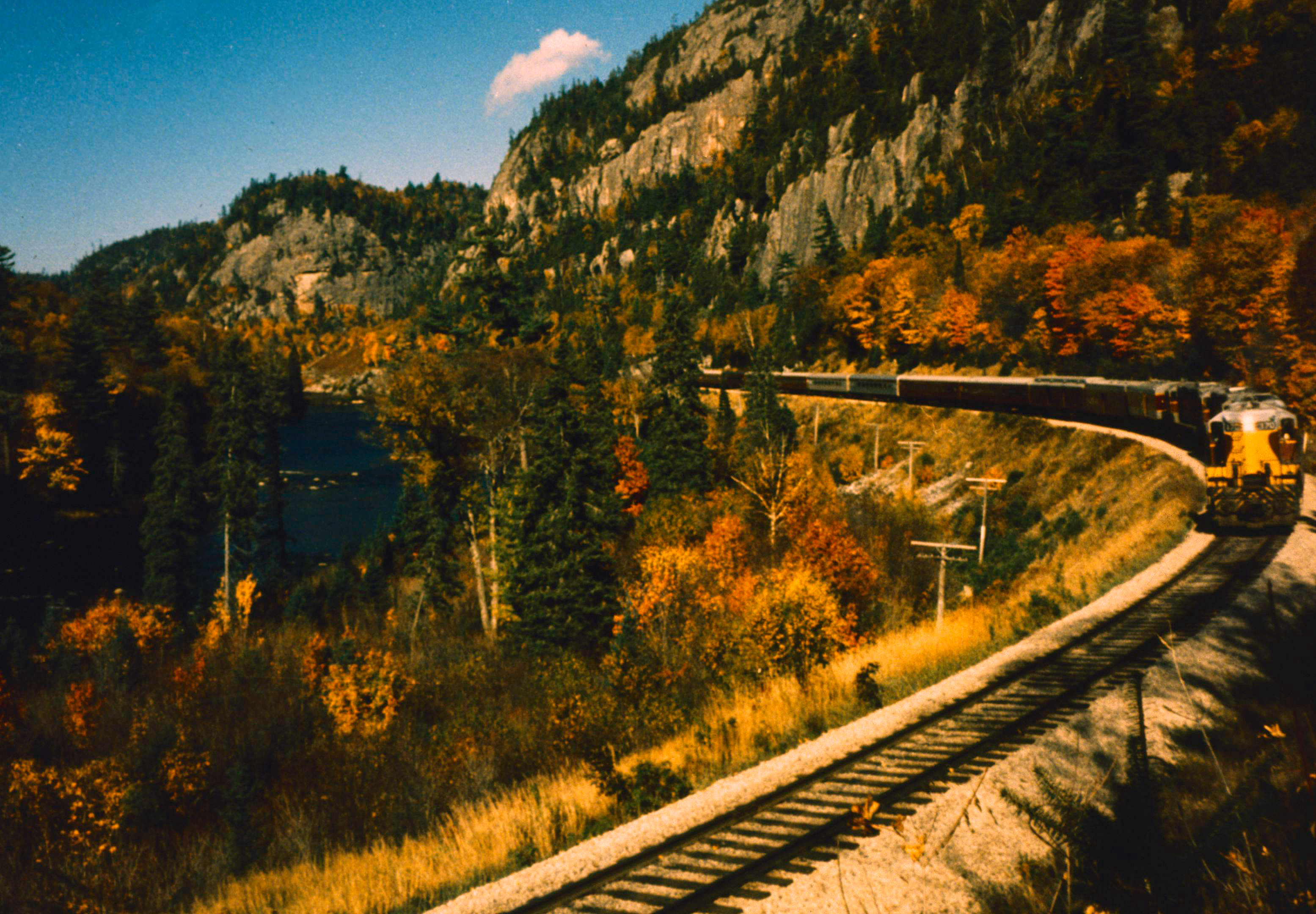

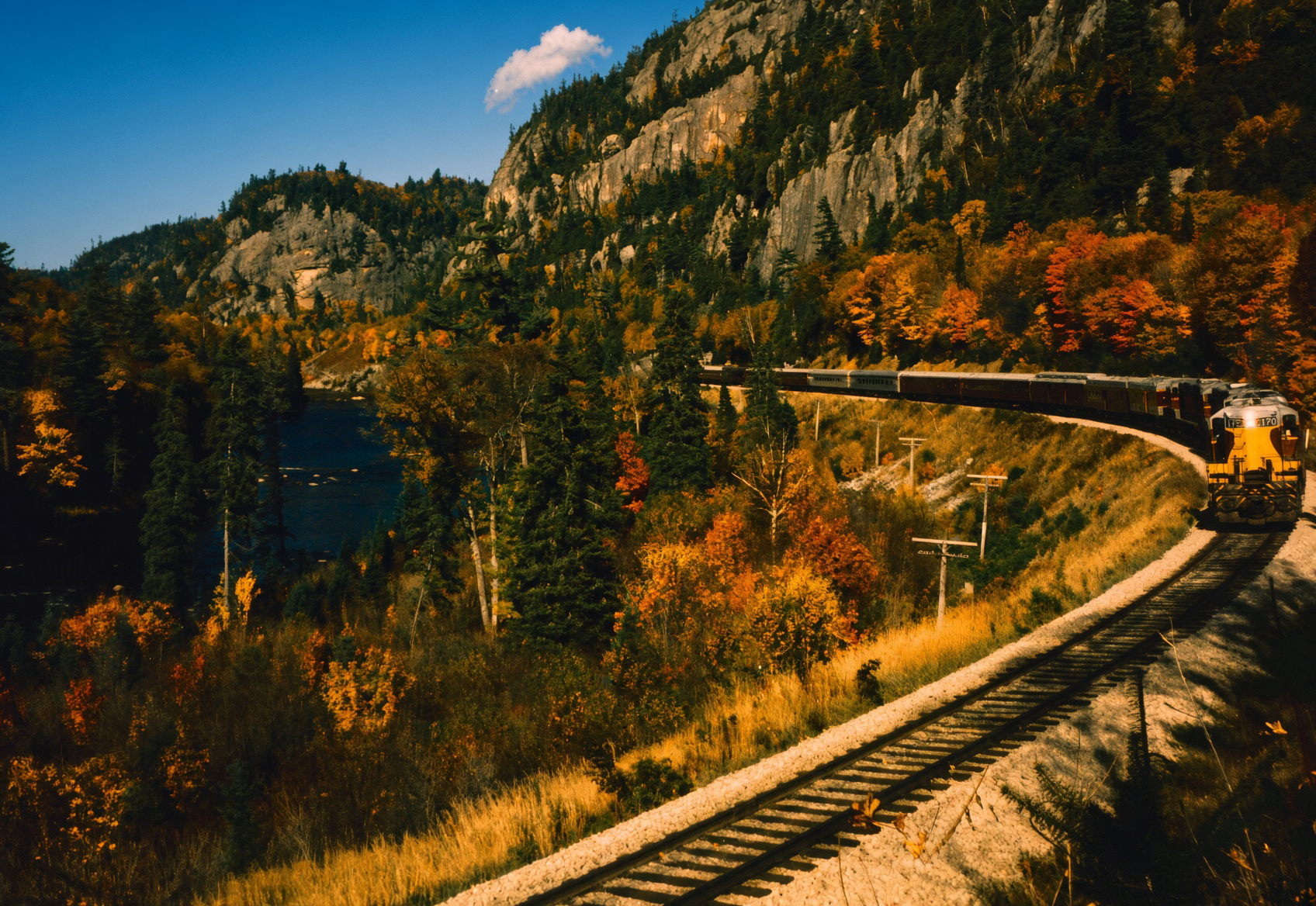

Several Algoma Central GP7's, led by #170, have the "Agawa Canyon Train" along the Agawa River (Ontario) during a fall day in the 1960's. Author's collection.

History

The Algoma Central was the idea of Francis H. Clergue to tap southern Ontario's vast timber and iron ore deposits. The entrepreneur's early years were spent in Maine where he saw success with a number of ventures before turning his attention to southern Ontario.

During the late 19th century he helped establish St. Mary's Paper and Algoma Steel (originally known as the Algoma Iron, Nickel & Steel Company) in Sault Ste. Marie then focused efforts on a railroad that would handle ore and timber to points along the Hudson Bay, Lake Superior, and Sault Ste. Marie.

According to Ron Cady's article, "Algoma Central: Tourist And Tonnage" from the September, 1984 issue of Trains Magazine, the Algoma Central Railway was formed on August 11, 1899. Its name survived for just two years before being changed to the Algoma Central & Hudson Bay Railway (AC&HR) in 1901 to better reflect the company's intentions.

Initially, Clergue had no issues in generating needed funding for the project as he eyed a route from Sault Ste. Marie to Lake Superior at Michipicoten. Here, rich ore deposits would be shipped out over the lakes. Unfortunately, it proved untenable as a port for the big steamships and he ran out of money after completing just 56 miles of track.

Logo

The Algoma Central Railway logo. Author's work.

His entire empire collapsed and the railroad was subsequently sold at foreclosure. In addition, the steel and paper interests were separated.

New ownership in 1909, based out of London, England, not only gave up on developing Michipicoten but also ended Clergue's hope in reaching the Hudson Bay.

Instead, they believed a more practical operation would establish a northern connection with the National Transcontinental Railway (later Canadian National) at Hearst.

At A Glance

Headquarters	Sault Ste. Marie, Ontario
Canadian Provinces Served	Ontario
Dates Of Operation	1903 - Present
Charter Date	August 11, 1899
Route Miles	322 (1952)
Track Gauge	4 Feet, 8 ½ Inches
Principal Lines	Sault Ste. Marie - Frater - Franz - Oba - Hearst, Ontario Hawk Junction - Michipicoten, Ontario
Principal Connections	Canadian National (Hearst, Oba) Canadian Pacific (Franz, Sault Ste. Marie) Soo Line (Sault Ste. Marie) Duluth, South Shore & Atlantic (Sault Ste. Marie)
Slogan	The Agawa Canyon Route
Reporting Mark	AC
Successor	Wisconsin Central/Canadian National/Watco

By January of 1912 through service was opened from Sault Ste. Marie to Michipicoten via Hawk Junction. At the same time crews worked northward out of Franz (where interchange was established with Canada's other transcontinental system, the Canadian Pacific) and had finished the line to Hearst in 1914.

In all, the railroad operated a 296-mile main line in addition to the 26-mile Michipicoten Branch giving it a total of 322 route miles. The entire system was dotted with small lakes, ponds, and marshland although the southern end, being somewhat more rugged, offered the greatest scenery.

Heading north of Sault Ste. Marie on the Soo Subdivision (Steelton - Hawk Junction) trains pass over the breathtaking 1,550-foot Montreal River Trestle which rises 130 feet above the river and spans a hydroelectric dam. Just a short time later the stunning Agawa Canyon is reached where rails skirt the Agawa River and the walls rise 575 feet above the narrow valley.

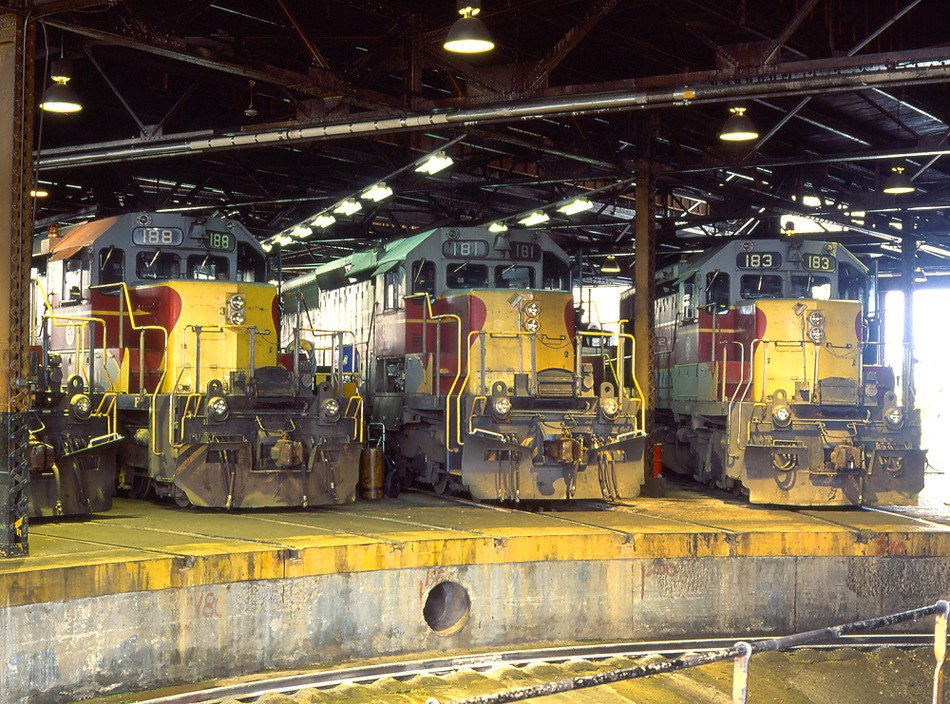

An Algoma Central SD40 and a pair of SD40-2's sit around the unique enclosed turntable at the Steelton Shops in Sault Ste. Marie on August 13, 1994. Wade Massie photo.

The railroad's Northern Subdivision (Hawk Junction - Hearst) flattens out with small bodies of water and marshland widespread across the landscape. Another interchange with the Canadian National was also gained at Oba, 51 miles south of Hearst.

At Steelton, just outside of Sault Ste. Marie the AC&HR established its primary shops and maintenance facility, which featured a very unique arrangement of having a turntable enclosed within the roundhouse.

In a somewhat ironic twist, Sault Ste. Marie itself became the railroad's most important port where the company's own ships handled a wide variety of inbound and outbound freight.

This city also provided important interchanges with CP (again), Soo Line, and Duluth, South Shore & Atlantic (a Soo Line subsidiary, itself a longtime CP property).

All along the main line were customers related to the timber industry with traffic ranging from pulpwood, logs, and wood chips to finished lumber and veneering. Algoma Steel was also an important customer; outbound loads consisted of finished steel with inbound shipments of iron ore.

System Map and Timetables (1969)

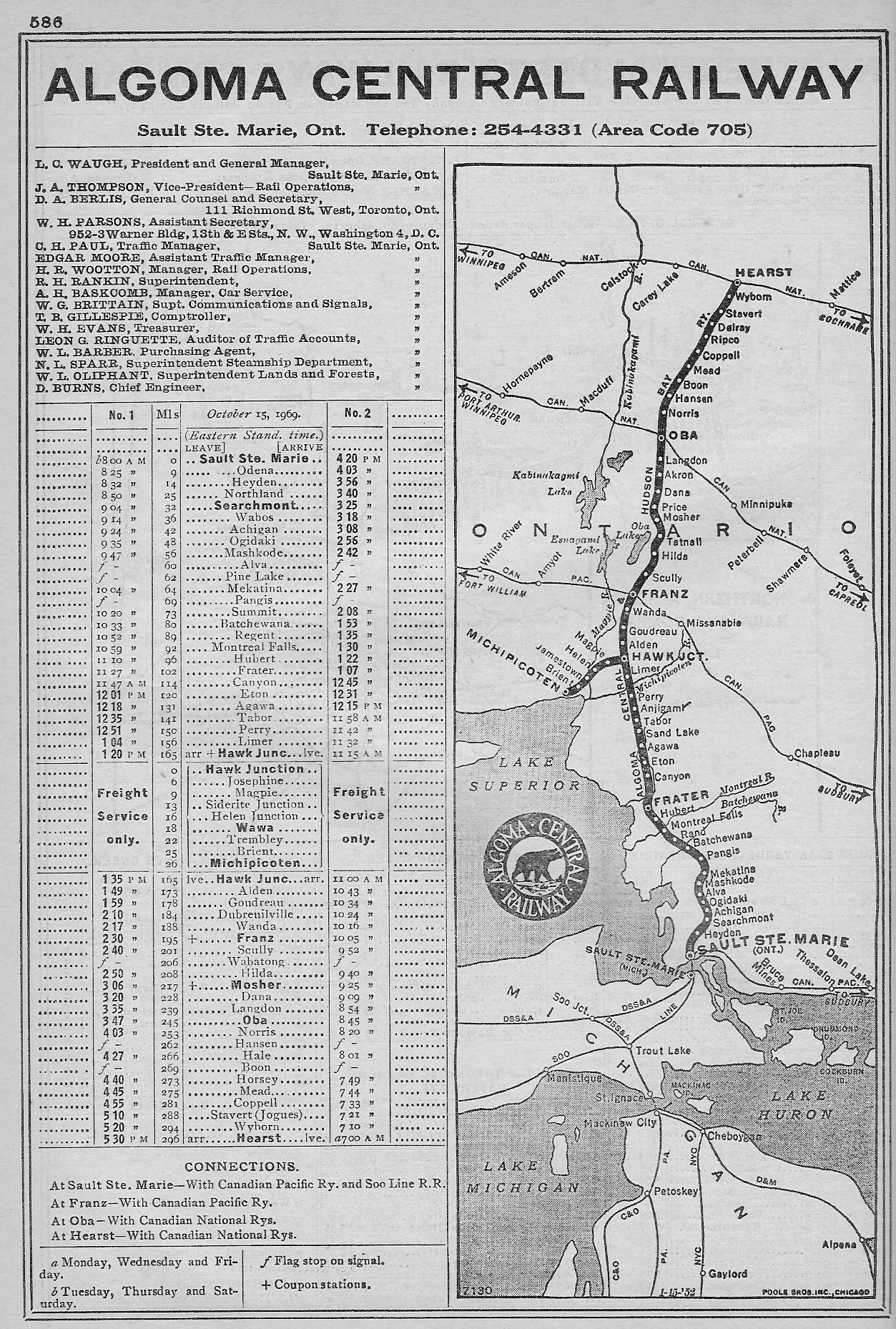

An official, 1969 system map of the Algoma Central Railway. Author's collection.

While the steel and timber industries were the foundation of AC&HR's business it also moved a range of other freight including pitch, petroleum products, and limestone. However, early on it was not the financial success it turned out to be in later years.

Shortly after the railroad's completion continuing struggles saw it slip once more into bankruptcy where it remained a ward of London's Bondholder Committee until after World War II.

Private ownership would not return until 1959. From its early days the company operated as more than just a railroad with a fleet of Great Lake ships known as the Marine Division.

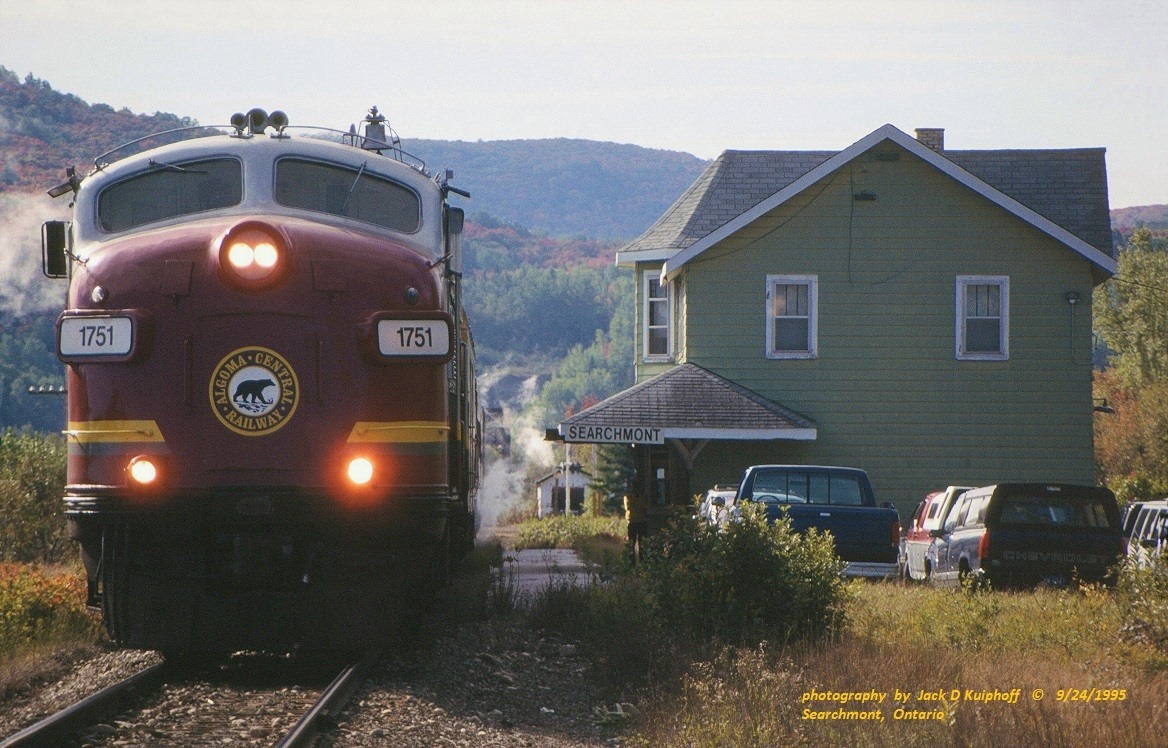

"Algoma Central FP9 #1751 leads train #1 out of the Sault as it heads northbound to Hearst and passes the classic station at Searchmont, Ontario on September 24, 1995." - Jack Kuiphoff

During the 1960's it further diversified by expanding into real estate and then branched out into the trucking industry. In 1965 the railroad's elongated name was dropped in favor of the original version, Algoma Central.

Beyond freight there was a strong demand for passenger service and the railroad was one of the last to continue offering such privately.

Into the early 1980's more than 100,000 passengers road annually, many preferring the popular, seasonal round-trip "Agawa Canyon Train."

Steam Roster

Class

None

S-1

C-1

C-2

C-3

None

M-1

None

Wheel Arrangement

4-6-0

0-4-0

0-6-0

2-8-0

4-8-0

2-6-0

2-10-2

2-8-2

4-6-0

Road Number

1-4

5-11

19-20

21-24

28-37

38-42

25-26

50-51

62-66

70-71

80-82

83,85

84, 86-87

100-104

Builder

Mason Machine

Various

Kingston

Baldwin

Montreal

CLC*

Brooks

Montreal

CLC

Baldwin

Alco/Richmond

Alco/Schenectady

Baldwin

Alco/Schenectady

Alco/Brooks

Alco/Schenectady

CLC

Date Built/Notes

1865, Ex-LV

1869, Ex-CB&Q

1902

1900

1911

1913

1892, Ex-IR&HB*

1907, M&NS***

1929

1912, Ex-Wabash

1913, Ex-Wabash

1910, Ex-Virginian

1915, Ex-M&StL****

1916, Ex-M&StL

1915-1920, Ex-M&StL

New

Acquired

1899

New

1903

New

1942

1943

1942-1943

1912

* Canadian Locomotive Company, Ltd.

** Iron Range & Huron Bay Railroad

*** Built new for subsidiary Manitoulin & North Shore (later Algoma Eastern Railway), lettered for the Algoma Central & Hudson Bay.

**** Minneapolis & St. Louis Railway

The above steam roster information is courtesy of Dale Wilson's book, "The Algoma Central Railway Story."

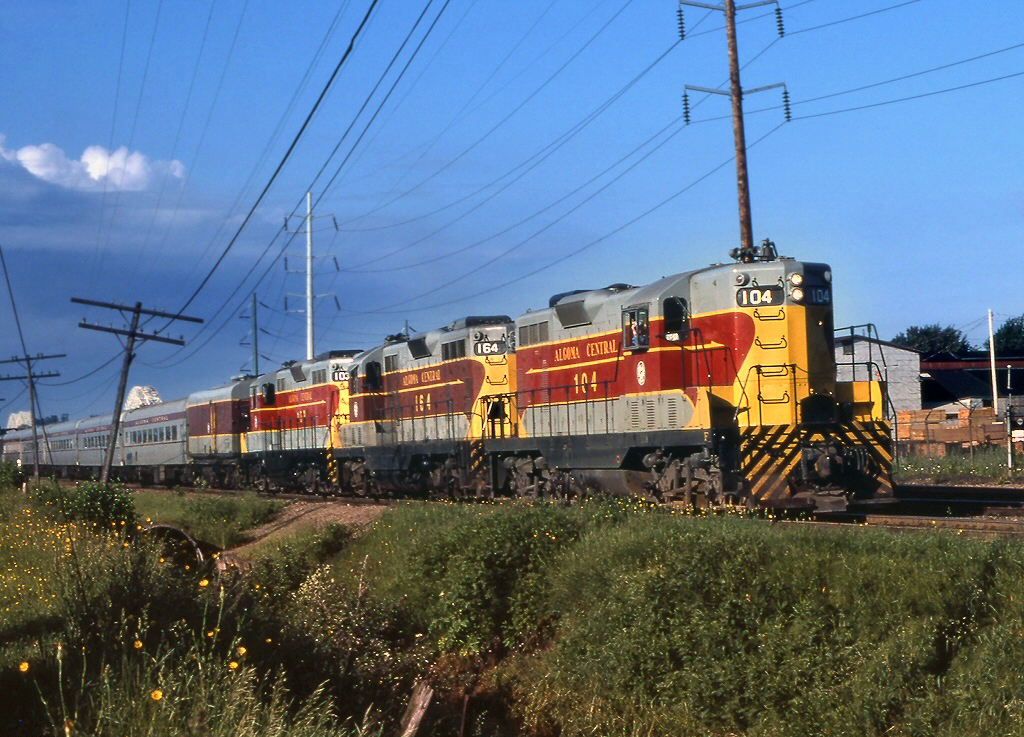

A trio of GP7ms, led by #104, power the road's popular "Algoma Central Canyon Train" at Sault Ste. Marie, Ontario, Canada during June of 1979. Rob Kitchen photo.

Diesel Roster

The Algoma Central was the first Canadian line to fully diesel, completing the process in 1952. It stuck entirely with EMDs (in this case locomotives from the builder's London, Ontario works; General Motors Diesel Division or GMDD).

Model

SW8

GP7

GP7M

GP9

SD40

SD40-2

GP38-2

Road Number

140-141

150-170

100-104

171-172

180-182

183-188

200-205

Builder

GMDD

Date Built

1951-1952

Rebuilt

1963

1971

1973

1981

Wisconsin Central Acquisition

There was a wide range of other trains and packages including another popular run, the Snow Train. Despite their success these trains were not profitable ventures losing upwards of a half-million dollars in some years although the Canadian government did provide much-needed subsidies covering 80% of the losses.

By 1990 the company's diversified holdings brought about another name change this time as the Algoma Central Corporation. With the other divisions, especially real estate, earning the bulk of the revenues the company lost interest in its railroad division and sought potential buyers.

The Wisconsin Central stepped forward and purchased the property on February 1, 1995. The WC was a growing, Class II "regional" operating a large block of trackage in Wisconsin deemed superfluous by the Soo Line during the 1980's. As the railroad's success grew worried Class I's felt threatened by its potential. In 2001, Canadian National acquired the WC, and as a result, the Algoma Central too.

The CN repeatedly threatened to shutdown the popular tourist train but ultimately never did. In 2021 Watco stepped up and purchased the entire railroad from CN. It has vowed to continue hosting the Agawa Canyon Tour Train.
